Ingots Exporter
Shree Extrusions Limited
BRASS ALLOYS
BRONZE ALLOYS

COPPER ALLOYS
Others

Low Leaded Brass

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Lead Free BrassC27450CZ121CuZn37

C27450 DZR Lead Free Brass

C27450 Lead Free Brass
C27450 DZR Lead Free Brass
PDF
Equivalent Specifications :
Specifications Designation
ISO CuZn37
Europen CW508L
BS
JIS C27450
Russian


C27450 Lead Free Brass to not only aid in lead free compliance, but to optimize manufacturing efficiencies through productivity & complete recyclability.

Typical Applications :

Advantages :


Chemical Composition:
Cu Pb Fe Zn Others
Min/Max 60-65 <0.25 (max) 0.35 Rem <0.5
Nominals 63.00 37.00

Mechanical Properties
Rod H02 Tensile Strength (ksi) Yield Strength (ksi) Elongation (%) Hardness (Rb)
58 40 30% 55-75

Fabrication Properties
Soldering Excellent
Brazing Excellent
Cold working Excellent
Plating Excellent
Forgability 95
Machinability 70

Sizes Available
WIRE 1mm TO 8 mm
HOLLOW RODS Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS 6mm To 130 mm
HEX 5mm To 60mm
SQUARE 4mm To 60mm
FLAT 5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS AS per Customer Drawing
BILLETS Up to 200mm
INGOTS AS per Specification

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Muntz MetalC28000CZ109CW509LC2801CuZn401634-CuZn40

C28000 Muntz Metal

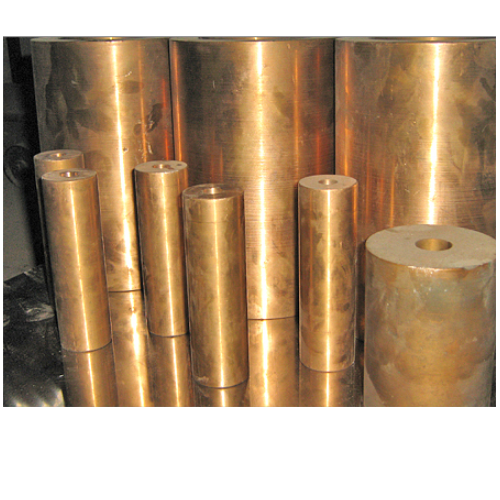

C69430 Silicon Red Brass
C28000 Muntz Metal
PDF
Founded and patented by English businessman George F. Muntz in 1832, Muntz Metal (C28000 or C280) is primarily used in architectural applications owing to its distinctive color. It is highly plastic metal at red heat that makes it ideal for pressing, stamping and hot forging. The metal alloy is also appreciated for high electrical and thermal conductivity, high ductility, high impact strength, good creep resistance, ease of welding, and low volatility under high vacuum.

Applications :
Equivalent Specifications:
SPECIFICATIONS DESIGNATION
ISO CuZn40
Europen CuZn40
BS CZ 109
JIS C 2800
Russian L60

Chemical Composition:
Cu Fe Pb Zn
Min/Max 59.0 - 63.0 0.07 0.09 Rem
Nominals 60.00 - - 40.00

Fabrication Properties
Joining Technique Suitability
Brazing Excellent
Butt Weld Good
Capacity for Being Cold Worked Fair
Capacity for Being Hot Formed Excellent
Coated Metal Arc Welding Not Recommended
Forgeability Rating 90
Gas Sheilded Arc Welding Fair
Machinability rating 40
Oxyacetylene Welding Good
Seam Weld Not Recommended
Soldering Excellent
Spot Weld Good

Physical Properties
Product Property US Customary Metric
Coefficient of Thermal Expansion 11.6 ·10-6 per oF (68-572 F) 20.9 · 10 6? per °C (20-300 C)
Density 0.303 lb/in3 @ 68 F 8.39 gm/cm3 @ 20 C
Electrical Conductivity 28 %IACS @ 68 F 0.164 MegaSiemens/cm @ 20 C
Electrical Resistivity 37.0 ohms-cmil/ft @ 68 F 6.15 microhm-cm @ 20 C
Melting Point Liquid US 1660 F 904 C
Melting Point Solid US 1650 F 899 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulas of Rigidity 5600 ksi 38610 MPa
Specific Gravity 8.39 8.39
Specific Heat Capacity 0.09 Btu/lb/°F @ 68 F 377.1 J/kg · °K at 293 K
Thermal Conductivity 71.0 Btu · ft/(hr · ft2 ·°F) @ 68 F 1229.9 W/m · °K at 20 C

Sizes Available
HOLLOW RODS Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS 6mm To 130 mm
HEX 5mm To 60mm
SQUARE 4mm To 60mm
FLAT 5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS AS per Customer Drawing
BILLETS Up to 200mm
INGOTS AS per Specification

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Copper-Lead-Zinc AlloyC36300CW508LCuZn37

C36300 Copper Lead Zinc Alloy

C36300 Copper Lead Zinc Alloy
C36300 Copper Lead Zinc Alloy
PDF
C36300 alloy provides a lower lead brass alloy option that aids with the compliance strategies of manufacturers who seek an alternative that is not only COMPLIANT, but also COMPETITIVE and COMPATIBLE with standard free cutting and forgings alloys commonly used today.

Typical Applications :
Screw machine parts and components for potable water products requiring lead free compliance
Forged parts and components for potable water products requiring lead free compliance




Equivelent Specifications:
Specifications Designation
ISO CuZn37
Europen CW508L
BS
JIS C36300
Russian


Advantages :

Chemical Composition :
Cu Pb Fe p Zn
Min/Max 61.0 - 63.0 0.25-0.70 0.15 (max) 0.04-0.15 Rem
Nominals 63.00 - - - 37.00

Mechanical Properties:
Rod H02 Tensile Strength (ksi) Yield Strength (ksi) Elongation (%) Hardness (Rb)
65 45 20% 75

Sizes Available:
Wire 1mm To 8mm
Hollow Rods Min Bore Size 20 mm and Max OD 100 mm
Round Rods 6mm To 130 mm
Hex 5mm To 60mm
Square 4mm To 60mm
Flat 5mm Min Thickness and max Width 120mm
Profiles / Sections AS per Customer Drawing
Billets Up to 200 mm
Ingots AS per Specification

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Leaded Muntz MetalC36500CZ123CW610N1634- CuZn40Pb

C36500 Leaded Muntz Metal

C36500 Leaded Muntz Metal
C36500 Leaded Muntz Metal
PDF
C36500 alloy provides a lower percentage lead alloy (versus conventional free cutting and forging alloys) that aids in the compliance to this legislation while maintaining machinability ratings near that of conventional free cutting brass

Typical Applications :
Screw machine parts requiring lower lead content
Potable water components, fixtures & applications
Forged components in lead free compliant products





Equivelent Specifications:
Specifications Designation
ISO CuZn40Pb
Europen CW610N
BS
JIS C36500
Russian


Advantages :

Chemical Composition :
Cu Pb Fe Sn Zn
Min/Max 58-61 0.25-0.70 0.15 (max) 0.25 (max) Rem
Nominals 60.00 - - - 40.00

Mechanical Properties:
Rod H02 Tensile Strength (ksi) Yield Strength (ksi) Elongation (%) Hardness (Rb)
65 45 30% 75

Sizes Available:
Wire 1mm To 8mm
Hollow Rods Min Bore Size 20 mm and Max OD 100 mm
Round Rods 6mm To 130 mm
Hex 5mm To 60mm
Square 4mm To 60mm
Flat 5mm Min Thickness and max Width 120mm
Profiles / Sections AS per Customer Drawing
Billets Up to 200 mm
Ingots AS per Specification

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Dezincification Resistant Forging BrassC48600CZ111C44302.0371CuZn28Sn1

C48600 Dezincification Resistant Forging Brass

C44300 Admiralty Brass
C48600 Dezincification Resistant Forging Brass
PDF
The Dezincification Resistant C48600 Forging Brass is composed of 60% copper, 39.2% zinc and 0.8% tin. The brass possess good strength and rigidity with duplex alpha + beta structure. The addition of zinc in place of tin makes the alloy high corrosion resistant against seawater. The addition of tin makes it resistant to dezincification and also inhibit the impingement by seawater at higher than normal temperatures. The alloy is appreciated for wear resistance, resistance towards stress corrosion cracking, galling and fatigue.




Equivelent Specifications
SPECIFICATIONS DESIGNATION
ISO CuZn28Sn1
Europen CuZn28Sn1As
BS CZ 111
JIS C 4430
Russian L62-1

Chemical Composition:
As Cu Pb Sn Zn
Min/Max 0.02-.25 59.0-62.0 1.0-2.5 .30-1.5 Rem
Nominals .13 60.5 1.7 .9

Sizes Available
HOLLOW RODS Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS 6mm To 130 mm
HEX 5mm To 60mm
SQUARE 4mm To 60mm
FLAT 5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS AS per Customer Drawing
BILLETS Up to 200mm
INGOTS AS per Specification

CATEGORY/STANDARD ASTM BS EN JIS DIN ISO IS
Low Leaded BrassC33000CW705RC330
Eco BrassC69300CW724R6931CuZn21Si3P

C33000 Low Leaded Brass

C33000  Low Leaded Brass
C33000 Low Leaded Brass
PDF
C33000 brass tubing, a yellow brass that is both formable and machinable. C330 is only produced in tube form and is generally suitable for minimal corrosive conditions. The lead content prevents from successful welding, but common machine processes include: machining, forming, piercing, and punching.

Typical Applications :
Pump Cylinder Liners
Power Cylinders Primers
Pump Lines
J Bends
Plumbing Accessories





Equivelent Specifications:
Specifications Designation
ISO C330
Europen CW705R
BS
JIS C33000
Russian


Advantages :

Chemical Composition :
Cu Pb Fe Zn
Min/Max 65.0-68.0 0.25-0.7 0.07 Rem
Nominals 66.00 0.50 - 33.5


Fabrication Properties :
Joining Technique Suitability
Soldering Excellent
Brazing Good
Oxyacethlene Welding Fair
Gas Shielded Arc Welding Fair
Coated Metal Arc Welding Not Recommended
Spot Weld Fair
Seam Weld Not Recommended
Butt Weld Fair
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Poor
Machinability Rating 60


Sizes Available:
Wire 1mm To 8mm
Hollow Rods Min Bore Size 20 mm and Max OD 100 mm
Round Rods 6mm To 130 mm
Hex 5mm To 60mm
Square 4mm To 60mm
Flat 5mm Min Thickness and max Width 120mm
Profiles / Sections AS per Customer Drawing
Billets Up to 200 mm
Ingots AS per Specification

C69300 Eco Brass

C69300 Eco Brass
C69300 Eco Brass
PDF
C69300is a high-performance, lead-free ECO BRASS. It is a great replacement for leaded fittings and its corrosion resistance properties make it an excellent solution for water supply and plumbing applications.also has good machinability, excellent hot forgeability, easily accepts solder and brazing, and has excellent polishing and plating capabilities.

Common Applications of C69300 Eco Brass:
Plumbing: Stop Valves, PEX fittings, Ball valves, Commercial and Residential water faucet parts.
Automotive: Fluid Connectors, Sensor Bodies, Thermostat Parts.
Industrial: Automatic Screw Machine Parts, Bolts, Condenser Tube Plate, Nuts, Pneumatic Fittings, Pump Parts, Screw MachineProduct, Valve Stems, Valve Bodies for Water.

SpecificationsASTMBSENJISDINISOIS
DesignationsC69300-CW724R6931-CuZn21Si3P-


Chemical Composition:
CuPbSnZnNiFeSiMnP
Min73.0-----2.7-0.04
Max77.00.090.20Rem0.100.103.40.100.15


Fabrication Properties:
Joining TechniqueSuitability
SolderingExcellent
BrazingGood
Oxyacetylene WeldingGood
Gas Shielded Arc WeldingGood
Coated Metal Arc WeldingGood
Machinability Rating85
Forgeability Rating95
Capacity for Being Hot FormedExcellent
Capacity for Being Cold WorkedPoor


Physical Properties:
Melting Point - Liquidus °F1616
Melting Point - Solidus °F1571
Density lb./cu in. at 68°F0.3
Specific Gravity8.3
Electrical Conductivity% IACS at 68°F8
Thermal Conductivity Btu/ sq. ft./ ft. hr./ °F at 68°F21.8
Coefficient of Thermal Expansion 68-57210⁻⁶ per °F (68 - 572°F)10.4
Specific Heat Capacity Btu/ lb. /°F at 68°F0.09
Modulus of Elasticity in Tension ksi15200


Sizes Available:
TUBES6.35 mm to 110mm
ROUND WIRES1 mm to 11mm
ROUND RODS1.2 to 250 mm
HEX RODSMin. 5 mm to Max. 65 mm
SQUARE RODSMin. 4 mm to Max. 60 mm
FLATSMin. 4 mm thickness and max width of 120mm
PROFILESAs per customer drawings
HOLLOW RODSMin Bore Size 20mm and Max OD 130mm
