High Tensile Brass Rod

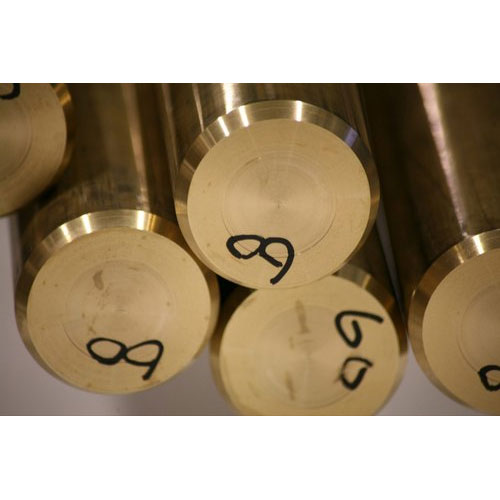

CW713 High Tensile Brass

CW713 High Tensile Brass
CW713 High Tensile Brass
PDF
CW713R is a high tensile brass which is alloyed with aluminum, manganese and silicon etc. whichmakes this alloy almost as hard as aluminum bronze, but considerably easier to process. CW713R also has good corrosion, wear resistance and machinability.

Typically this alloy is used in the automotive and hydraulic industries in forms of products such as Bearings for high load, slide-& wear-plates, valve guides, piston parts etc.

Specifications Designation
UNS C67400
BS 2872/4 CZ135
DIN 2.0550 (CuZn40Al2)
EN CuZn37MnAl2PbSi


Chemical Composition
 CuPbSnZnSiNiFeAlMnOther
Min570.2--0.3--1.31.5-
Max590.8Max 0.4Rem1.3Max 1.0Max 1.02.33.0Max 0.3

Product Details:
Minimum Order Quantity250 Kilogram
Material GradeCW713
ShapeRound
Usage/ApplicationAutomotive and Hydraulic
BrandSHREE EXTRUSIONS LIMITED
Diameter1 mm To 220 mm
CompositionAs per CW713
Tensile Strength540 N mm2
Elongation12
Temperature500 to 600
ColorYellow
Hardness160 HB
MaterialBrass
Packaging TypeWooden
StandardCW713
AstmC67400
Alloy Or NotYES

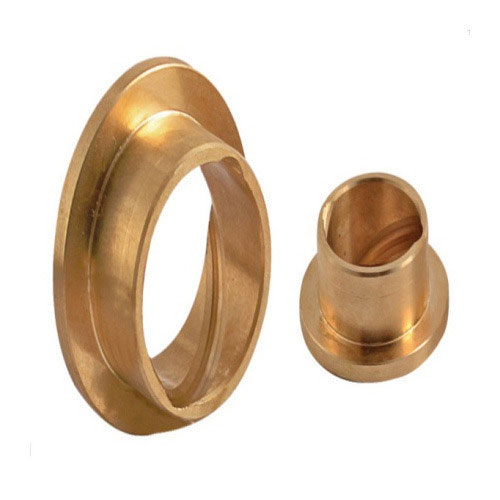

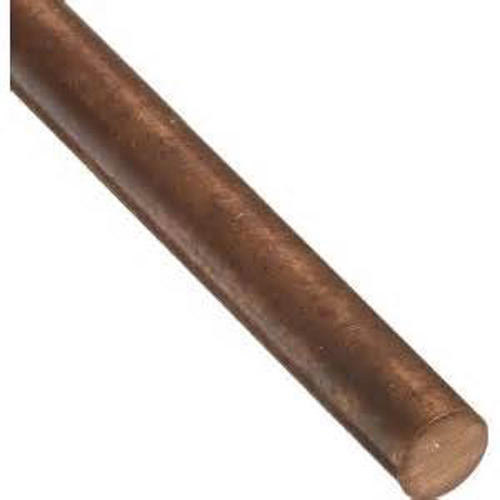

C67400 Mangannese Brass

C67400 Mangannese Brass
C67400 Mangannese Brass
PDF
The C67400 Mangannese Brass alloy is manufactured using the process of bending, drawing, upsetting, and many other processes. The alloy is excellent on hot and cold workability and forge ability.

Typical Uses :
Equivelent Specifications:
Specifications Designation
UNS C66800
UNS C67300
UNS C67420

Chemical Composition:
  Al Cu Fe Pb Mn Ni Si Sn Zn
Min/Max 0.50 - 2.0 57.0 - 60.0 0.35 0.5 2.0 - 3.5 0.25 0.50 - 1.5 0.3 Rem
Nominals 1.2 58.5 - - 2.8 - 1 - 36.5

Specifications:
End Product Specification
Bar SAE J461, J463
Forging SAE J461, J463
Rod SAE J463, J461
Shapes SAE J463, J461

Fabrication:
Joining Technique Suitability
Brazing Good
Butt Weld Good
Capacity for Being Cold Worked Poor
Capacity for Being Hot Formed Excellent
Coated Metal Arc Welding Not Recommended
Forgeability 100
Gas Shielded Arc Welding Fair
Machinability Rating 30
Oxyacetylene Welding Not Recommended
Seam Weld Good
Soldering Fair
Spot Weld Good

Physical Properties:
Product Property US Customary Metric
Coefficient of Thermal Expansion 11.0 ·10-6 per oF (68-572 F) 19.8 ·10-6 per oC (20-300 C)
Density 0.292 lb/in3 at 68 F 8.08 gm/cm3 @ 20 C
Electrical Conductivity 23 %IACS @ 68 F 0.135 MegaSiemens/cm @ 20 C
Electrical Resistivity 45.1 ohms-cmil/ft @ 68 F 7.5 microhm-cm @ 20 C
Melting Point - Liquidus 1625 F 885 C
Melting Point - Solidus 1590 F 866 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Modulus of Rigidity 6000 ksi 41370 MPa
Specific Gravity 8.08 8.08
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg/ · oK at 293 K
Thermal Conductivity 58.0 Btu · ft/(hr · ft2·oF)at 68F 100.4 W/m · oK at 20 C

Sizes Available
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

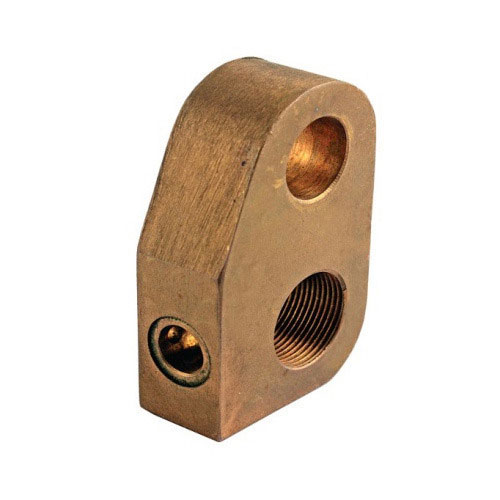

C67500 Mangannese Brass

C67500 Mangannese Brass
C67500 Mangannese Brass
Alloy C67500 (CuZn37FeSnMn) is a wrought alloy with additions of iron, tin and manganese to increase the strength and corrosion resistance.

It can be worked to increase the strength and can be available in the half hard and fully hard condition.

It possess hot working properties and can be die forged into valves, connectors and other components for military applications. It can also be hot headed or upset forged for manufacturing fasteners.

Typical Uses :
Specifications Designation
UNS C67500
BS 2872/4 CZ114
EN CW721R
IS IS320 HT2
ISO CuZn39AlFeMn


Chemical Composition:
  Al Cu Fe Pb Mn Zn
Min/Max 0.25 57.0 - 60.0 0.80 - 2.0 0.2 0.05 - 0.50 Rem
Nominals - 58.5000 1.4000 - 0.1000 39.0000

Specifications:
End Product Specification
Bar ASTM B138, SAE J461, J463
Bar, For ging ASTM B124
Bolts ASTM F468
Forgings, Die ASTM B283, SAE J463, J461
Nuts ASTM F467
Rod ASTM B138, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes ASTM B138, SAE J461, J463
Shapes, Forging ASTM B124
Studs ASTM F468

Fabrication:
Joining Technique Suitability
Brazing Excellent
Butt Weld Good
Capacity for Being Cold Worked Poor
Capacity for Being Hot Formed Excellent
Coated Metal Arc Welding Not Recommended
Forgeability 80
Gas Shielded Arc Welding Fair
Machinability Rating 30
Oxyacetylene Welding Good
Seam Weld Fair
Soldering Excellent
Spot Weld Good

Physical Properties:
Product Property US Customary Metric
Coefficient of Thermal Expansion 11.8 ·10-6 per oF (68-572 F) 21.2 ·10-6 per oC (20-300 C)
Density 0.302 lb/in3 at 68 F 8.36 gm/cm3 @ 20 C
Electrical Conductivity 24 %IACS @ 68 F 0.14 MegaSiemens/cm @ 20 C
Electrical Resistivity 43.2 ohms-cmil/ft @ 68 F 7.18 microhm-cm @ 20 C
Melting Point - Liquidus 1630 F 888 C
Melting Point - Solidus 1590 F 866 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulus of Rigidity 5600 ksi 38610 MPa
Specific Gravity 8.36 8.36
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg/ · oK at 293 K
Thermal Conductivity 61.0 Btu · ft/(hr · ft2·oF)at 68F 105.6 W/m · oK at 20 C

Sizes Available
ROUND RODS/BARS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

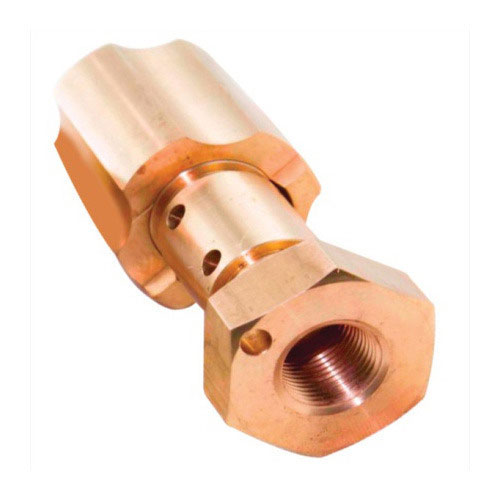

C67600 High Tensile Manganese Bronze Rod

C67600 High Tensile Manganese Bronze Rod
C67600 High Tensile Manganese Bronze Rod
PDF
The alloy possess excellent hot and cold workability; good forge ability. Fabricated by bending, coining, coppersmith, drawing and upsetting, hot forging and pressing, knurling, roll threading, shearing, spinning, swaging, and stamping.

Typical Uses :












Chemical Composition:
  Cu Fe Pb Mn Sn Zn
Min/Max 57.0 - 60.0 0.40 - 1.3 0.50 - 1.0 0.05 - 0.50 0.50 - 1.5 Rem
Nominals 58.5 0.8 0.7 0.27 1 38.7

Specifications:
End Product Specification
Brazing Filler Metal AWS A5.8
Forgings, Die ASTM B283

Fabrication:
Joining Technique Suitability
Brazing Excellent
Capacity for Being Cold Worked Poor
Capacity for Being Hot Formed Excellent
Forgeability 80
Gas Shielded Arc Welding Fair
Machinability Rating 60
Oxyacetylene Welding Good
Soldering Excellent
Spot Weld Good

Physical Properties:
Product Property US Customary Metric
Coefficient of Thermal Expansion 11.8 ·10-6 per oF (68-572 F) 20.4 ·10-6 per oC (20-300 C)
Density 0.302 lb/in3 at 68 F 8.36 gm/cm3 @ 20 C
Electrical Conductivity 24 %IACS @ 68 F 0.139 MegaSiemens/cm @ 20 C
Melting Point - Liquidus 1630 F 890 C
Melting Point - Solidus 1590 F 865 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulus of Rigidity 5600 ksi 38600 MPa
Thermal Conductivity 61.0.0 Btu · ft/(hr · ft2·oF)at 68F 105.7 W/m · oK at 20 C

Sizes Available
ROUND RODS/BARS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

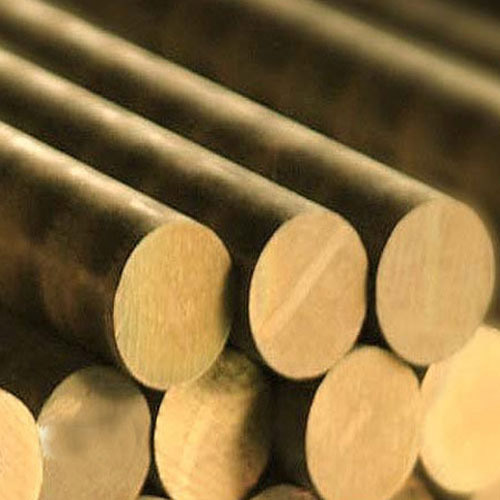

C67000 High Tensile Manganese Bronze B Rods

C67000 High Tensile Manganese Bronze B Rods
C67000 High Tensile Manganese Bronze B Rods
The C67000 High Tensile Manganese Bronze B Rods is the high in strength alloy that possess hot and cold workability with good forging ability. The alloy is manufactured using the process of bending, coining, drawing and upsetting, hot forging and pressing, knurling, roll threading, shearing, spinning, swaging, and stamping.


Typical Uses :

Equivelent Specifications:
Specifications Designation
ISO CuAl8Fe3
European CuAl8Fe3
BSI AS 106
JIS C 6140

Physical Properties :
Product Property -
Melting Point - Liquidus°F 1652
Densitylb/cu in. at 68°F 0.286
Specific Gravity 7.92
Electrical Conductivity% IACS at 68°F 22
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 57
Coefficient of Thermal Expansion 68-57210?6 per °F (68 – 572°F) 11.9

Sizes Available:
ROUND RODS 8mm To 100 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

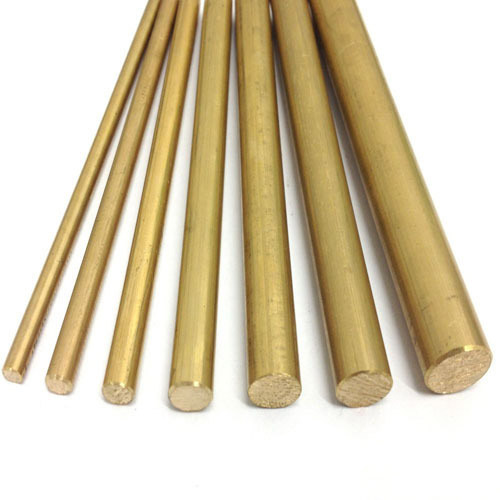

C67500 High Tensile Manganese Bronze Rods

C67500 High Tensile Manganese Bronze Rods
C67500 High Tensile Manganese Bronze Rods
Alloy C67500 High Tensile Manganese Bronze Rods is a wrought alloy with additions of iron, tin and manganese to increase the strength and corrosion resistance.

It can be worked to increase the strength and can be available in the half hard and fully hard condition.

It possess hot working properties and can be die forged into valves, connectors and other components for military applications. It can also be hot headed or upset forged for manufacturing fasteners.

Typical Uses :
Chemical Composition:
  Al Cu Fe Pb Mn Si Zn
Min/Max 0.25 57.0 - 60.0 0.80 - 2.0 0.2 0.05 - 0.50 0.50 - 1.5 Rem
Nominals - 58.5000 1.4000 - 0.1000 1.0000 39.0000

Specifications:
End Product Specification
Bar ASTM B138, SAE J461, J463
Bar, For ging ASTM B124
Bolts ASTM F468
Forgings, Die ASTM B283, SAE J463, J461
Nuts ASTM F467
Rod ASTM B138, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes ASTM B138, SAE J461, J463
Shapes, Forging ASTM B124
Studs ASTM F468

Fabrication:
Joining Technique Suitability
Brazing Excellent
Butt Weld Good
Capacity for Being Cold Worked Poor
Capacity for Being Hot Formed Excellent
Coated Metal Arc Welding Not Recommended
Forgeability 80
Gas Shielded Arc Welding Fair
Machinability Rating 30
Oxyacetylene Welding Good
Seam Weld Fair
Soldering Excellent
Spot Weld Good

Physical Properties:
Product Property US Customary Metric
Coefficient of Thermal Expansion 11.8 ·10-6 per oF (68-572 F) 21.2 ·10-6 per oC (20-300 C)
Density 0.302 lb/in3 at 68 F 8.36 gm/cm3 @ 20 C
Electrical Conductivity 24 %IACS @ 68 F 0.14 MegaSiemens/cm @ 20 C
Electrical Resistivity 43.2 ohms-cmil/ft @ 68 F 7.18 microhm-cm @ 20 C
Melting Point - Liquidus 1630 F 888 C
Melting Point - Solidus 1590 F 866 C
Modulas of Elasticity in Tension 15000 ksi 103400 MPa
Modulus of Rigidity 5600 ksi 38610 MPa
Specific Gravity 8.36 8.36
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg/ · oK at 293 K
Thermal Conductivity 61.0 Btu · ft/(hr · ft2·oF)at 68F 105.6 W/m · oK at 20 C

Sizes Available
ROUND RODS/BARS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

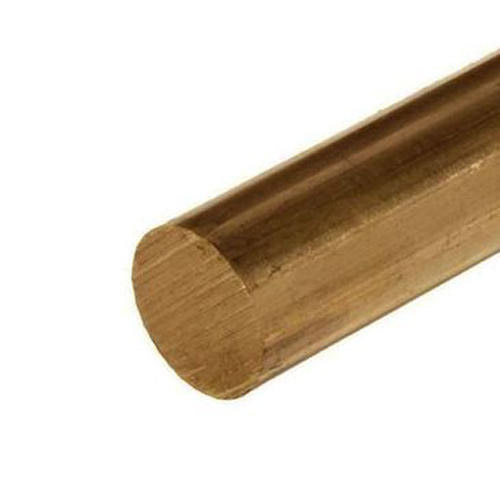

C67300 High Tensile Manganese Bronze Rods

C67300 High Tensile Manganese Bronze Rods
C67300 High Tensile Manganese Bronze Rods
The C67300 High Tensile Manganese Bronze Rods is high in strength alloy with good bearing qualities. The alloy maintains high impact resistance with with good machinability by making it well suited for clutch bearings, shaft bushings, sleeve bearings, thrust bearings, pump parts, drive shafts, bearing pins, wear plates, gears and cams. It also resists squashing out under high loads and extreme wear applications.

Typical Uses :
Equivelent Specifications:
Specifications Designation
UNS C66800
UNS C67400
UNS C67420

Chemical Composition:
  Al Cu Fe Pb Mn Ni Si Sn Zn
Min/Max 0.25 58.0 - 63.0 0.5 0.40 - 3.0 2.0 - 3.5 0.25 0.50 - 1.5 0.3 Rem
Nominals - 60.5000 - 1.7000 2.7000 - 1.0000 - 34.1000

Specifications:
End Product Specification
Bar SAE J461, J463
Forgings SAE J461, J463
Rod SAE J463, J461
Shapes SAE J463, J461

Fabrication:
Joining Technique Suitability
Machinability Rating 70

Physical Properties:
Product Property US Customary Metric
Coefficient of Thermal Expansion 11 ·10-6 per oF (68-572 F) 19.0 ·10-6 per oC (20-300 C)
Density .30 lb/in3 at 68 F 8.3 gm/cm3 @ 20 C
Electrical Conductivity 22 %IACS @ 68 F 0.13 MegaSiemens/cm @ 20 C
Melting Point - Liquidus 1605 F 874 C
Modulas of Elasticity in Tension 17000 ksi 117200 MPa
Specific Gravity 8.3 8.3
Thermal Conductivity 55 Btu · ft/(hr · ft2·oF)at 68F 95.0 W/m · oK at 20 C

Sizes Available
ROUND RODS/BARS
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification


C66800 High Tensile Manganese Bronze Rods

C66800 High Tensile Manganese Bronze Rods
C66800 High Tensile Manganese Bronze Rods
The C66800 High Tensile Manganese Bronze Rods comes under the category of naval brass and is composed of 60% copper, 39.2% zinc and 0.8% tin. In compliance with typical naval brass the alloy possess good strength as well as rigidity. The corrosion resistance towards sea water is achieved due to the presence of zinc in place of tin. The addition of tin also makes the alloy resistant towards dezincification, fatigue, galling, and stress corrosion cracking.

Applications:
Equivelent Specifications
SPECIFICATIONS DESIGNATION
ISO C67300
Europen C67400

Chemical Composition:
Cu Al Fe Pb Mn Ni Si Sn Zn
Min/Max 60.0-63.0 .25 .35 .50 2.0-3.5 .25 .50-1.5 .30 Rem.
Nominals 61.5 - - - 2.7 - 1.0 - -

Sizes Available
HOLLOW RODS Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS 6mm To 130 mm
HEX 5mm To 60mm
SQUARE 4mm To 60mm
FLAT 5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS AS per Customer Drawing
BILLETS Up to 200mm
INGOTS AS per Specification


C67400 High Tensile Manganese Bronze Rods

C67400 High Tensile Manganese Bronze Rods
C67400 High Tensile Manganese Bronze Rods
C67400 High Tensile Manganese Bronze Rods is a high tensile brass which is alloyed with aluminum, manganese and silicon etc. which makes this alloy almost as hard as aluminum bronze, but considerably easier to process. CW713R also has good corrosion, wear resistance and machinability.

Typically this alloy is used in the automotive and hydraulic industries in forms of products such as Bearings for high load, slide-& wear-plates, valve guides, piston parts etc.






Equivalent Specifications:
SPECIFICATIONS DESIGNATION
BS 2872/4 CZ135
DIN 2.0550(CuZn40Al2)
EN CuZn37MnAl2PbSi

Chemical Composition:
  Cu Pb Sn Zn Si Ni Fe Al Mn Other
Min 57 0.2 - - 0.3 - - 1.3 1.5 -
Max 59 0.8 Max 0.4 Rem 1.3 Max 1.0 Max 1.0 2.3 3.0 Max 0.3

Physical Properties:
Melting Point – Liquidus °F 1625
Melting Point – Solidus °F 1589
Density lb./cu in. at 68°F 0.296
Specific Gravity 8.12
Electrical Conductivity% IACS at 68°F 19
Thermal Conductivity Btu/ sq. ft./ ft. hr./ °F at 68°F 36.42
Coefficient of Thermal Expansion 68-57210⁻⁶ per °F (68 –572°F) 9
Specific Heat Capacity Btu/ lb. /°F at 68°F 0.090
Modulus of Elasticity in Tension ksi 15954

Sizes Available:
ROUND RODS 8mm To 100 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification


Product Range

Brass Wires Specialized Brass Wires Brass Rods Specialized Copper Alloy Rods Ingots & Billet
Copper & Copper Alloy Tubes Bronze Rods Brass Tubes Copper Nickel
BRASS ALLOYS
Leaded Brass Naval Brass Nickel Silver Brass Red Brass Yellow Brass
Other Brass
BRONZE ALLOYS
Aluminum Bronze Silicon Aluminum Bronze High Tensile Manganese Bronze Nickel Aluminum Bronze
COPPER ALLOYS
C11000 Electrolytic Tough Pitch Copper Nickel Leaded Copper Other Copper

Home About Us Product Range Quality We Provide Industrial Applications Certifications Company Video Enquiry

Member IndiaMART© Shree Extrusions Limited. All Rights Reserved (Terms of Use)
Developed and Managed by IndiaMART InterMESH Limited
