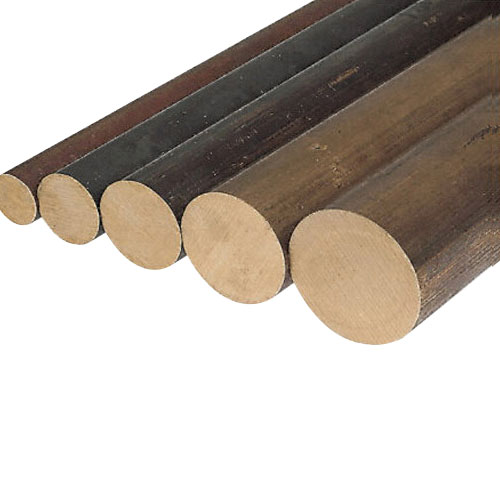

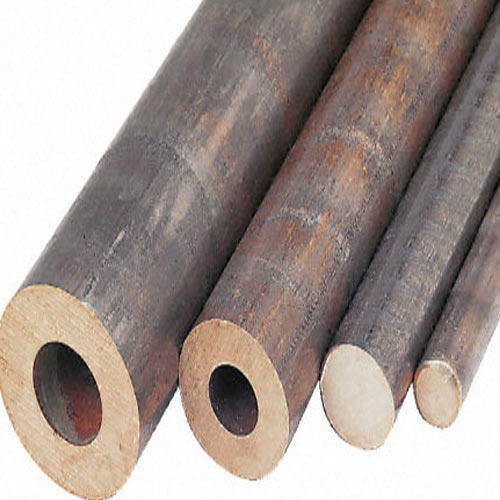

Aluminium Bronze Rods

Spec Equivalents: AMS 4640, SAE J463, QQ-C-465B, ASME SB150, ASTM B-150, B-124, B-171, B-283
C63000 (AMS 4640 - CDA 630) Nickel Aluminum Bronze alloy is an excellent choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion. The addition of nickel increases the strength of alloy without effecting its excellent ductility, toughness and corrosion resistance. Typical applications for Aluminium Bronze Rods included aircraft landing gear components, strut bearings, main pistons, trunnion bearings and similar vital components.

Typical Uses :

• Industrial: Hydraulic Bushings for Earth Moving Equipment, Corrosion Resistant Articles, Bushings, Bearings, Heat Exchanger Flanges, Heat Exchanger Headers, Tanks, Valve Balls, Structural Members, Pump Shafts, Aircraft Parts, Valve Guides, Plunger Tips, Welded Piping Systems, Balls, Gears, Cams, Pump Parts, Shafting, Condenser Tube for Power Stations and Desalting Units, Valve Seats
• Marine : Pump Parts, Bolts, Nuts, Propellers, Ship Propellers
• Plumbing : Faucets

Equivelent Specifications:

Specifications	Designation
ISO	CuAl0Ni5Fe4
European	CuAl0Ni5Fe4

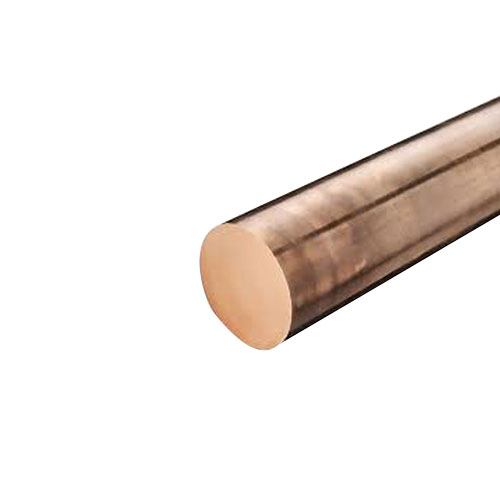

BS	CA 104
JIS	C 6301

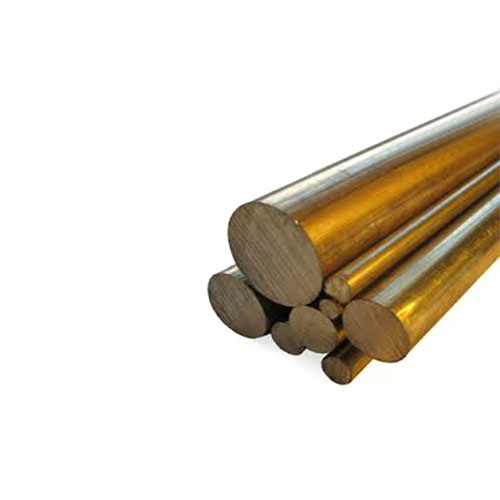

Russian	BrAZN10.4.4

Chemical Composition:

	Al	Cu	Fe	Mn	Ni	Si	Sn	Zn
Min/Max	9.0 - 11.0	Rem	2.0 - 4.0	1.5	4.0 - 5.5	0.25	0.2	0.3
Nominals	10	82	3	-	5	-	-	-

Specification:

End Product	Specification
Bar	AMS 4640, ASME SB150, ASTM B150, FEDERAL QQ-C-450, SAE J463, J461
Bar, Forging	ASTM B124
Bolts	ASTM F468
Forgins, Die	AMS 4640, ASTM B283, MILITARY MIL-B-16166
Nuts	ASTM F467
Plate	ASTM B171, FEDERAL QQ-C-450
Plate, Condenser Tube	ASME SB171, ASTM B171
Rod	AMS 4640, ASME SB150, ASTM B150, SAE J463, J461
Rod, Forging	ASTM B124
Screws	ASTM F468
Shapes	AMS 4640, ASTM B150, SAE J463, J461
Shapes, Forging	ASTM B124
Sheet	FEDERAL QQ-C-450

Fabrication:

Joining Technique	Suitability
Brazing	Fair
Butt Weld	Good
Capacity for Being Cold Worked	Poor
Capacity for Being Hot Formed	Good
Coated Metal Arc Welding	Good
Forgeability Rating	75
Gas Sheilded Arc Welding	Good
Machinability rating	30
Oxyacetylene Welding	Not recommended
Seam Weld	Good
Soldering	Not recommended
Spot Weld	Good

Physical Properties :

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	9.0 ·10-6 per oF (68-572 F)	16.2 · 10 6? per °C (20-300 C)
Density	0.274 lb/in3 @ 68 F	7.58 gm/cm3 @ 20 C
Electrical Conductivity	7 %IACS @ 68 F	0.041 MegaSiemens/cm @ 20 C
Electrical Resistivity	116.0 ohms-cmil/ft @ 68 F	19.28 microhm-cm @ 20 C
Melting Point Liquid US	1930 F	1054 C
Melting Point Solid US	1895 F	1035 C

Sizes Available

ROUND RODS	8mm To 70 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

Spec Equivalents: AMS 4640, SAE J463, QQ-C-465B, ASME SB150, ASTM B-150, B-124, B-171, B-283
C63000 (AMS 4640 - CDA 630) Nickel Aluminum Bronze alloy is an excellent choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion. The addition of nickel increases the strength of alloy without effecting its excellent ductility, toughness and corrosion resistance. Typical applications for AB2 Aluminium Bronze Rods CA104 included aircraft landing gear components, strut bearings, main pistons, trunnion bearings and similar vital components.

Typical Uses :

• Industrial: Hydraulic Bushings for Earth Moving Equipment, Corrosion Resistant Articles, Bushings, Bearings, Heat Exchanger Flanges, Heat Exchanger Headers, Tanks, Valve Balls, Structural Members, Pump Shafts, Aircraft Parts, Valve Guides, Plunger Tips, Welded Piping Systems, Balls, Gears, Cams, Pump Parts, Shafting, Condenser Tube for Power Stations and Desalting Units, Valve Seats
• Marine : Pump Parts, Bolts, Nuts, Propellers, Ship Propellers
• Plumbing : Faucets

Equivelent Specifications:

Specifications	Designation
ISO	CuAl0Ni5Fe4
European	CuAl0Ni5Fe4
BS	CA 104
JIS	C 6301
Russian	BrAZN10.4.4

Chemical Composition:

	Al	Cu	Fe	Mn	Ni	Si	Sn	Zn
Min/Max	9.0 - 11.0	Rem	2.0 - 4.0	1.5	4.0 - 5.5	0.25	0.2	0.3
Nominals	10	82	3	-	5	-	-	-

Specification:

End Product	Specification
Bar	AMS 4640, ASME SB150, ASTM B150, FEDERAL QQ-C-450, SAE J463, J461
Bar, Forging	ASTM B124
Bolts	ASTM F468
Forgins, Die	AMS 4640, ASTM B283, MILITARY MIL-B-16166
Nuts	ASTM F467
Plate	ASTM B171, FEDERAL QQ-C-450
Plate, Condenser Tube	ASME SB171, ASTM B171
Rod	AMS 4640, ASME SB150, ASTM B150, SAE J463, J461
Rod, Forging	ASTM B124
Screws	ASTM F468
Shapes	AMS 4640, ASTM B150, SAE J463, J461
Shapes, Forging	ASTM B124
Sheet	FEDERAL QQ-C-450

Fabrication:

Joining Technique	Suitability
Brazing	Fair
Butt Weld	Good
Capacity for Being Cold Worked	Poor
Capacity for Being Hot Formed	Good
Coated Metal Arc Welding	Good
Forgeability Rating	75
Gas Sheilded Arc Welding	Good
Machinability rating	30
Oxyacetylene Welding	Not recommended
Seam Weld	Good
Soldering	Not recommended
Spot Weld	Good

Physical Properties :

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	9.0 ·10-6 per oF (68-572 F)	16.2 · 10 6? per °C (20-300 C)
Density	0.274 lb/in3 @ 68 F	7.58 gm/cm3 @ 20 C
Electrical Conductivity	7 %IACS @ 68 F	0.041 MegaSiemens/cm @ 20 C
Electrical Resistivity	116.0 ohms-cmil/ft @ 68 F	19.28 microhm-cm @ 20 C
Melting Point Liquid US	1930 F	1054 C
Melting Point Solid US	1895 F	1035 C

Sizes Available

ROUND RODS	8mm To 70 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

We are a leading and well recognized names in the field of offering quality finished range of AB1, AB2 that are as per BS:2872 CA-103, 104, ADM1076D, IS:10569/83, BS:1400AB1, AB2, IS:305 AB1. Also meeting the specifications as per IS 10569/05 NR. EQUIVALENT SPEC. BS 2872/86 CA103, ASTMBC62300, these are made available in annealed finish in sizes of 6 to 15, 15 to 50, 50 to 80 and 80 and above. These bronze rods have excellent capacity to be cold and hot formed and have machine-ability rating of 50%. Further, the rods have Forge-ability rating of 75 %, fair suitability for brazing and good welding capability.

Being corrosion resistant & non sparking alloy, some of the application uses of these bronze rods include

• Oil refinery
• Valves & fittings
• For worm gears
• Valve stems
• High pressure valves

Specifications:

Aluminum Bronze

ASTM B 111 C60800 ASME SB 111 C 60800 EN 12451 CuAl5As CW200G

Chemical Requirements
Copper	Remainder
Aluminium	8.5 to 11.0%
Iron	4.0 to 6.0%
Nickel	4.0 to 6.0%
Manganese	0.50% max
Tin	0.10% max
Zinc	0.40% max
Silicon	0.10% max
Total Imp. Excl. Mn	0.50% max
Physical Properties
Condition	Size	T.S. MPa	EL% Min
Annealed / As Manufactured	6 to 15 15 to 50 50 to 80 80 & above	700 700 680 650	10% 12% 12% 12%
Fabrication Properties
Capacity for being
Cold formed	Poor
Hot formed	Good
Machinability rating	30%
Forgeability rating	75%
Suitability for soldering	Poor
Suitability for Brazing	Fair
Suitability for welding	Good
Uses
Excellent for corrosion resistant, Highest strength,Good wear and heat resistance, Like marine pump hardware & bearings, Valve guides & seats, Nuts, Shaft, Bolts & Threaded Parts for Ship building & power generation industries.

Spec Equivalents: AMS 4640, SAE J463, QQ-C-465B, ASME SB150, ASTM B-150, B-124, B-171, B-283
C63000 (AMS 4640 - CDA 630) Nickel Aluminum Bronze alloy is an excellent choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion. The addition of nickel increases the strength of alloy without effecting its excellent ductility, toughness and corrosion resistance. Typical applications for Aluminum Bronze GOST BrAZN10.4.4 included aircraft landing gear components, strut bearings, main pistons, trunnion bearings and similar vital components.

Typical Uses :

• Industrial: Hydraulic Bushings for Earth Moving Equipment, Corrosion Resistant Articles, Bushings, Bearings, Heat Exchanger Flanges, Heat Exchanger Headers, Tanks, Valve Balls, Structural Members, Pump Shafts, Aircraft Parts, Valve Guides, Plunger Tips, Welded Piping Systems, Balls, Gears, Cams, Pump Parts, Shafting, Condenser Tube for Power Stations and Desalting Units, Valve Seats
• Marine : Pump Parts, Bolts, Nuts, Propellers, Ship Propellers
• Plumbing : Faucets

Equivelent Specifications:

Specifications	Designation
ISO	CuAl0Ni5Fe4
European	CuAl0Ni5Fe4
BS	CA 104
JIS	C 6301
Russian	BrAZN10.4.4

Chemical Composition:

	Al	Cu	Fe	Mn	Ni	Si	Sn	Zn
Min/Max	9.0 - 11.0	Rem	2.0 - 4.0	1.5	4.0 - 5.5	0.25	0.2	0.3
Nominals	10	82	3	-	5	-	-	-

Specification:

End Product	Specification
Bar	AMS 4640, ASME SB150, ASTM B150, FEDERAL QQ-C-450, SAE J463, J461
Bar, Forging	ASTM B124
Bolts	ASTM F468
Forgins, Die	AMS 4640, ASTM B283, MILITARY MIL-B-16166
Nuts	ASTM F467
Plate	ASTM B171, FEDERAL QQ-C-450
Plate, Condenser Tube	ASME SB171, ASTM B171
Rod	AMS 4640, ASME SB150, ASTM B150, SAE J463, J461
Rod, Forging	ASTM B124
Screws	ASTM F468
Shapes	AMS 4640, ASTM B150, SAE J463, J461
Shapes, Forging	ASTM B124
Sheet	FEDERAL QQ-C-450

Fabrication:

Joining Technique	Suitability
Brazing	Fair
Butt Weld	Good
Capacity for Being Cold Worked	Poor
Capacity for Being Hot Formed	Good
Coated Metal Arc Welding	Good
Forgeability Rating	75
Gas Sheilded Arc Welding	Good
Machinability rating	30
Oxyacetylene Welding	Not recommended
Seam Weld	Good
Soldering	Not recommended
Spot Weld	Good

Physical Properties :

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	9.0 ·10-6 per oF (68-572 F)	16.2 · 10 6? per °C (20-300 C)
Density	0.274 lb/in3 @ 68 F	7.58 gm/cm3 @ 20 C
Electrical Conductivity	7 %IACS @ 68 F	0.041 MegaSiemens/cm @ 20 C
Electrical Resistivity	116.0 ohms-cmil/ft @ 68 F	19.28 microhm-cm @ 20 C
Melting Point Liquid US	1930 F	1054 C
Melting Point Solid US	1895 F	1035 C

Sizes Available

ROUND RODS	8mm To 70 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

We are a leading and well recognized names in the field of offering quality finished range of IS 3091:1999 Aluminium Bronze Rods that are as per BS:2872 CA-103, 104, ADM1076D, IS:10569/83, BS:1400AB1, AB2, IS:305 AB1. Also meeting the specifications as per IS 10569/05 NR. EQUIVALENT SPEC. BS 2872/86 CA103, ASTMBC62300, these are made available in annealed finish in sizes of 6 to 15, 15 to 50, 50 to 80 and 80 and above. These bronze rods have excellent capacity to be cold and hot formed and have machine-ability rating of 50%. Further, the rods have Forge-ability rating of 75 %, fair suitability for brazing and good welding capability.

Being corrosion resistant & non sparking alloy, some of the application uses of these bronze rods include

• Oil refinery
• Valves & fittings
• For worm gears
• Valve stems
• High pressure valves

Specifications:

Aluminum Bronze

ASTM B 111 C60800 ASME SB 111 C 60800 EN 12451 CuAl5As CW200G

Chemical Requirements
Copper	Remainder
Aluminium	8.5 to 11.0%
Iron	4.0 to 6.0%
Nickel	4.0 to 6.0%
Manganese	0.50% max
Tin	0.10% max
Zinc	0.40% max
Silicon	0.10% max
Total Imp. Excl. Mn	0.50% max
Physical Properties
Condition	Size	T.S. MPa	EL% Min
Annealed / As Manufactured	6 to 15 15 to 50 50 to 80 80 & above	700 700 680 650	10% 12% 12% 12%
Fabrication Properties
Capacity for being
Cold formed	Poor
Hot formed	Good
Machinability rating	30%
Forgeability rating	75%
Suitability for soldering	Poor
Suitability for Brazing	Fair
Suitability for welding	Good
Uses
Excellent for corrosion resistant, Highest strength,Good wear and heat resistance, Like marine pump hardware & bearings, Valve guides & seats, Nuts, Shaft, Bolts & Threaded Parts for Ship building & power generation industries.

We are a leading and well recognized names in the field of offering quality finished range of CUAL 10NI5FE4 Nickel Aluminum Bronze Rods that are as per BS:2872 CA-103, 104, ADM1076D, IS:10569/83, BS:1400AB1, AB2, IS:305 AB1. Also meeting the specifications as per IS 10569/05 NR. EQUIVALENT SPEC. BS 2872/86 CA103, ASTMBC62300, these are made available in annealed finish in sizes of 6 to 15, 15 to 50, 50 to 80 and 80 and above. These bronze rods have excellent capacity to be cold and hot formed and have machine-ability rating of 50%. Further, the rods have Forge-ability rating of 75 %, fair suitability for brazing and good welding capability.

Being corrosion resistant & non sparking alloy, some of the application uses of these bronze rods include

• Oil refinery
• Valves & fittings
• For worm gears
• Valve stems
• High pressure valves

Specifications:

Aluminum Bronze

ASTM B 111 C60800 ASME SB 111 C 60800 EN 12451 CuAl5As CW200G

Chemical Requirements
Copper	Remainder
Aluminium	8.5 to 11.0%
Iron	4.0 to 6.0%
Nickel	4.0 to 6.0%
Manganese	0.50% max
Tin	0.10% max
Zinc	0.40% max
Silicon	0.10% max
Total Imp. Excl. Mn	0.50% max
Physical Properties
Condition	Size	T.S. MPa	EL% Min
Annealed / As Manufactured	6 to 15 15 to 50 50 to 80 80 & above	700 700 680 650	10% 12% 12% 12%
Fabrication Properties
Capacity for being
Cold formed	Poor
Hot formed	Good
Machinability rating	30%
Forgeability rating	75%
Suitability for soldering	Poor
Suitability for Brazing	Fair
Suitability for welding	Good
Uses
Excellent for corrosion resistant, Highest strength,Good wear and heat resistance, Like marine pump hardware & bearings, Valve guides & seats, Nuts, Shaft, Bolts & Threaded Parts for Ship building & power generation industries.

We are a leading and well recognized names in the field of offering quality finished range of AB1 Aluminium Bronze Rods CA103 that are as per BS:2872 CA-103, 104, ADM1076D, IS:10569/83, BS:1400AB1, AB2, IS:305 AB1. Also meeting the specifications as per IS 10569/05 NR. EQUIVALENT SPEC. BS 2872/86 CA103, ASTMBC62300, these are made available in annealed finish in sizes of 6 to 15, 15 to 50, 50 to 80 and 80 and above. These bronze rods have excellent capacity to be cold and hot formed and have machine-ability rating of 50%. Further, the rods have Forge-ability rating of 75 %, fair suitability for brazing and good welding capability.

Being corrosion resistant & non sparking alloy, some of the application uses of these bronze rods include

• Oil refinery
• Valves & fittings
• For worm gears
• Valve stems
• High pressure valves

Specifications:

Specifications	Designation
Italy	CuAl11Fe4
BS	AB1-C
JIS	H5114

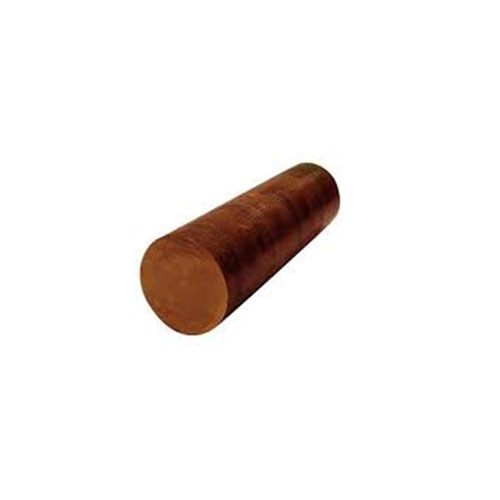

IS	IS 3091 : 1999

Chemical Requirements
Copper	Remainder
Aluminium	8.5 to 11.0%
Iron	4.0 to 6.0%
Nickel	4.0 to 6.0%
Manganese	0.50% max
Tin	0.10% max
Zinc	0.40% max
Silicon	0.10% max
Total Imp. Excl. Mn	0.50% max
Physical Properties
Condition	Size	T.S. MPa	EL% Min
Annealed / As Manufactured	6 to 15 15 to 50 50 to 80 80 & above	700 700 680 650	10% 12% 12% 12%
Fabrication Properties
Capacity for being
Cold formed	Poor
Hot formed	Good
Machinability rating	30%
Forgeability rating	75%
Suitability for soldering	Poor
Suitability for Brazing	Fair
Suitability for welding	Good
Uses
Excellent for corrosion resistant, Highest strength,Good wear and heat resistance, Like marine pump hardware & bearings, Valve guides & seats, Nuts, Shaft, Bolts & Threaded Parts for Ship building & power generation industries.

We are a leading and well recognized names in the field of offering quality finished range of CW307G Nickel Aluminium Bronze Rods that are as per BS:2872 CA-103, 104, ADM1076D, IS:10569/83, BS:1400AB1, AB2, IS:305 AB1. Also meeting the specifications as per IS 10569/05 NR. EQUIVALENT SPEC. BS 2872/86 CA103, ASTMBC62300, these are made available in annealed finish in sizes of 6 to 15, 15 to 50, 50 to 80 and 80 and above. These bronze rods have excellent capacity to be cold and hot formed and have machine-ability rating of 50%. Further, the rods have Forge-ability rating of 75 %, fair suitability for brazing and good welding capability.

Being corrosion resistant & non sparking alloy, some of the application uses of these bronze rods include

• Oil refinery
• Valves & fittings
• For worm gears
• Valve stems
• High pressure valves

Specifications:

Aluminum Bronze

ASTM B 111 C60800 ASME SB 111 C 60800 EN 12451 CuAl5As CW200G

Chemical Requirements
Copper	Remainder
Aluminium	8.5 to 11.0%
Iron	4.0 to 6.0%
Nickel	4.0 to 6.0%
Manganese	0.50% max
Tin	0.10% max
Zinc	0.40% max
Silicon	0.10% max
Total Imp. Excl. Mn	0.50% max
Physical Properties
Condition	Size	T.S. MPa	EL% Min
Annealed / As Manufactured	6 to 15 15 to 50 50 to 80 80 & above	700 700 680 650	10% 12% 12% 12%
Fabrication Properties
Capacity for being
Cold formed	Poor
Hot formed	Good
Machinability rating	30%
Forgeability rating	75%
Suitability for soldering	Poor
Suitability for Brazing	Fair
Suitability for welding	Good
Uses
Excellent for corrosion resistant, Highest strength,Good wear and heat resistance, Like marine pump hardware & bearings, Valve guides & seats, Nuts, Shaft, Bolts & Threaded Parts for Ship building & power generation industries.

We are a leading and well recognized names in the field of offering quality finished range of NES 833 Nickel Aluminum Bronze Rods that are as per BS:2872 CA-103, 104, ADM1076D, IS:10569/83, BS:1400AB1, AB2, IS:305 AB1. Also meeting the specifications as per IS 10569/05 NR. EQUIVALENT SPEC. BS 2872/86 CA103, ASTMBC62300, these are made available in annealed finish in sizes of 6 to 15, 15 to 50, 50 to 80 and 80 and above. These bronze rods have excellent capacity to be cold and hot formed and have machine-ability rating of 50%. Further, the rods have Forge-ability rating of 75 %, fair suitability for brazing and good welding capability.

Being corrosion resistant & non sparking alloy, some of the application uses of these bronze rods include

• Oil refinery
• Valves & fittings
• For worm gears
• Valve stems
• High pressure valves

Specifications:

Aluminum Bronze

ASTM B 111 C60800 ASME SB 111 C 60800 EN 12451 CuAl5As CW200G

Chemical Requirements
Copper	Remainder
Aluminium	8.5 to 11.0%
Iron	4.0 to 6.0%
Nickel	4.0 to 6.0%
Manganese	0.50% max
Tin	0.10% max
Zinc	0.40% max
Silicon	0.10% max
Total Imp. Excl. Mn	0.50% max
Physical Properties
Condition	Size	T.S. MPa	EL% Min
Annealed / As Manufactured	6 to 15 15 to 50 50 to 80 80 & above	700 700 680 650	10% 12% 12% 12%
Fabrication Properties
Capacity for being
Cold formed	Poor
Hot formed	Good
Machinability rating	30%
Forgeability rating	75%
Suitability for soldering	Poor
Suitability for Brazing	Fair
Suitability for welding	Good
Uses
Excellent for corrosion resistant, Highest strength,Good wear and heat resistance, Like marine pump hardware & bearings, Valve guides & seats, Nuts, Shaft, Bolts & Threaded Parts for Ship building & power generation industries.

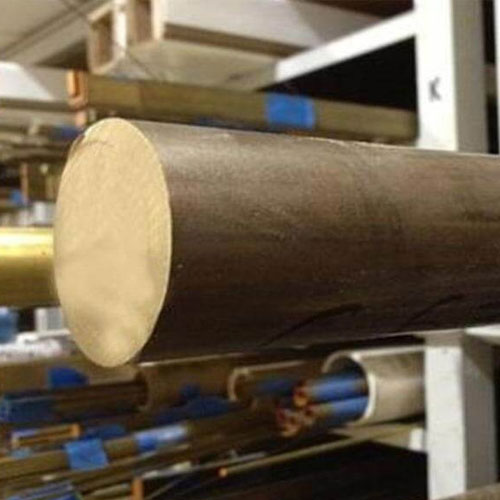

We are a leading and well recognized names in the field of offering quality finished range of CW303G Aluminium Bronze Rods that are as per BS:2872 CA-103, 104, ADM1076D, IS:10569/83, BS:1400AB1, AB2, IS:305 AB1. Also meeting the specifications as per IS 10569/05 NR. EQUIVALENT SPEC. BS 2872/86 CA103, ASTMBC62300, these are made available in annealed finish in sizes of 6 to 15, 15 to 50, 50 to 80 and 80 and above. These bronze rods have excellent capacity to be cold and hot formed and have machine-ability rating of 50%. Further, the rods have Forge-ability rating of 75 %, fair suitability for brazing and good welding capability.

Being corrosion resistant & non sparking alloy, some of the application uses of these bronze rods include

• Oil refinery
• Valves & fittings
• For worm gears
• Valve stems
• High pressure valves

Specifications:

Specifications	Designation
Italy	CuAl11Fe4
BS	AB1-C
JIS	H5114
IS	IS 3091 : 1999

Chemical Requirements
Copper	Remainder
Aluminium	8.5 to 11.0%
Iron	4.0 to 6.0%
Nickel	4.0 to 6.0%
Manganese	0.50% max
Tin	0.10% max
Zinc	0.40% max
Silicon	0.10% max
Total Imp. Excl. Mn	0.50% max
Physical Properties
Condition	Size	T.S. MPa	EL% Min
Annealed / As Manufactured	6 to 15 15 to 50 50 to 80 80 & above	700 700 680 650	10% 12% 12% 12%
Fabrication Properties
Capacity for being
Cold formed	Poor
Hot formed	Good
Machinability rating	30%
Forgeability rating	75%
Suitability for soldering	Poor
Suitability for Brazing	Fair
Suitability for welding	Good
Uses
Excellent for corrosion resistant, Highest strength,Good wear and heat resistance, Like marine pump hardware & bearings, Valve guides & seats, Nuts, Shaft, Bolts & Threaded Parts for Ship building & power generation industries.
