Copper Pipe

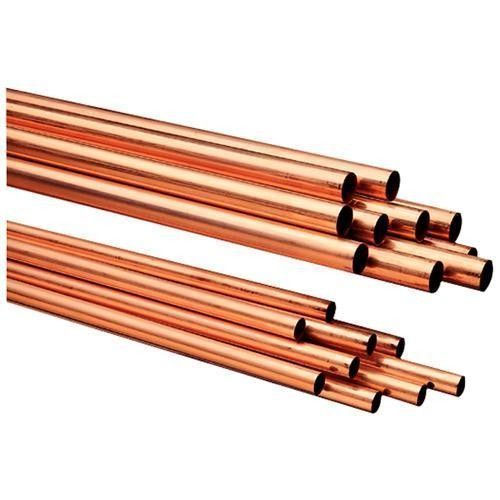

C11000 ETP Copper Pipe

C11000 ETP Copper Pipe
We have with us rich process expertise so as to successfully handle the demands of ETP Copper Tubes. These are made available by us in diverse grades, dimensions as well as thickness options and are available at affordable prices so as to effectively meet clients' specific budgetary requirements. Being durable and sturdy in construction, these are corrosion resistant as well as deliver high performance standards.

Some of the specific features of these Electrolytic Tough Pitch (ETP) copper tubes are
  • Have high electrical & thermal conductivity
  • Have good corrosion resistance
  • Have good solder-ability
  • Have excellent hot and cold workability
  • Have high ductility
  • Are in conformance to ASTM and other industry specifications
  • Highly suitable for usage areas like general engineering, heat exchangers, solar panel, hardware areas


Product Applications:
  • Some of the areas where these are used in include:
  • Defense & Railways
  • Electrical & Electronic industry
  • Refrigeration industry
  • Heat Exchangers & Solar Panels
  • Hardware & General Engineering applications

Specifications:
EC / ETP Copper
  • ASTM B 68 C 12200
  • ASTM B 75 DLP C12000
  • BS 2871 Part 2 C 101
  • BS 2871 Part 3 C 106
  • EN 12451 DHP
  • JIS H3300 C 1220

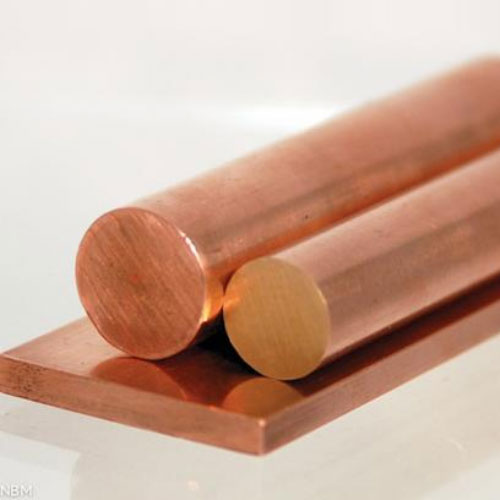

C10100 Oxygen Free Electronic

C10100 Oxygen Free Electronic
C10100 Oxygen Free Electronic
PDF
Copper, OFE, Oxygen Free Electronic. C10100 has conductivity 101% IACS, the highest among coppers. Used for electrical and electronic conductors, wave guides, cavity resonators, superconductor matrixes, vacuum tube and solid-state devices, and glass-to-metal seals. Chemical Composition:
  Cu Pb Ag Zn Fe As P O Sb Te
Min 99.99 - - - - - - - - -
Max - 0.0005 0.0025 0.0001 0.0010 0.0005 0.0003 0.0005 0.0004 0.0002

Physical Properties :
Product Property Metric
Melting Point – Liquidus °F 1981
Melting Point – Solidus °F 1981
Density lb./cu in. at 68°F 0.323
Specific Gravity 8.94
Electrical Conductivity*% IACS at 68°F 101
Thermal Conductivity Btu/ sq. ft/ ft.Hr/ °F at 68°F 226
Coefficient of Thermal Expansion 68-57210⁻⁶ per °F (68 – 572°F) 9.8
Specific Heat Capacity Btu/ lb. /°F at 68°F 0.092
Modulus of Elasticity in Tension (ksi) 17000

Sizes Available
ROUND RODS 1.2 mm to 250 mm
HEX 1.2 mm to 250 mm
SQUARE 4 mm to 60 mm
FLAT 4 mm Min Thickness and max Width 120 mm
BILLETS Up to 200 mm
INGOTS As per Specification

Thermal Properties
Treatment Minimum* Maximum*
Annealing 700 1200
Hot Treatment 1400 1600

Medical Grade Copper Pipe

Medical Grade Copper Pipe
EN 13348 - Medical Grade Copper Pipe
PDF
At Shree Extrusions Limited we proudly manufacture SHREE marked Medical Grade Copper Pipe used in Medical Gas Distribution system. Uninterrupted Medical Gas supply is a necessity in hospitals (ICCU, Operation Theater, Wards, and Nursery etc.) Pipes facilitate this in most effective manner.

Shree marked medical grade copper tubes are manufactured as per EN13348/ BS EN 1057 specifications. The pipes are manufacturer under thorough inspections and quality control measures.

Shree marked medical grade copper tubes are available in size range 6mm to 108mm OD, 0.6mm to 2.0mm wall thickness in Half Hard/Hard condition and length 3 meter or as per requirement.

Shree pipes are subjected to TPI by reputed agencies like Lloyds Register, SGS, and TUV as per customer demand.

TYPICAL USES for EN 13348 Medical Grade Copper Pipes- MGPS:
Medical Gas Distribution System for uninterrupted medical gas supply in hospital (ICCU, Operation Theater, Wards, Nursery etc.)

Product Details:
Particular EN13348 Standard SHREE
CHEMICAL COMPOSITION Copper (Cu) + Silver (Ag) 99.90% Spectro Analysis done per heat as per standard tolerances.
Phosphorous 0.015% to 0.04%
CARBON CONTENT TEST Determining lubricant residue as total Carbon Content by measuring Carbon Dioxide Generated. Tested with Combustion Method as per EN723:2009
TENSILE / ELONGATION TEST
Temper Tensile Strength MPa min. Elongation A % min Hardness (Indicative) HV 5
As per EN1773 Common Term
R220a annealeda 220 40 (40 to 75) Specifications maintained with help of In house testing facility.
R250 half hard 250 30 (75 to 100)
R290 hard 290 3 (min. 100)
DRIFTING TEST Depending on Size and Temper Mandatory / Agreed Terms Conical Mandrel @ 45º with tube end expanding 30º
FREE FROM DEFECT TEST EDDY Current Test for detection of local defects EDDY Current Test conducted in accordance with EN 1971
CLEANLINESS Proper Degreasing and End Capped Our pipes are Degreased as per standard and End Caps are affixed.


TOLERANCE - Wall Thickness
Nominal Outside Tolerance Wall Thickness
diameter (mm) e< 1 mm(%) e> 1 mm(%)
< 18 10 13
> 18 10 15


Medical Gas Pipeline System Size Range as per EN 13348 / BS EN 1057 Specification
Sr. No. Outer Diameter MM Wall Thickness MM Wall Thickness Tolerance Temper Length (Meter) Weight Per Meter (in Kg)
Dimension Technical Details
1 10 0.6 +/- 10% Half Hard 3 Meter 0.158
2 12 0.7 +/- 10% Half Hard 3 Meter 0.222
3 15 0.9 +/- 10% Half Hard 3 Meter 0.356
4 22 0.9 +/- 10% Half Hard 3 Meter 0.533
5 28 0.9 +/- 10% Half Hard 3 Meter 0.685
6 35 1.2 +/- 10% Half Hard 3 Meter 1.139
7 42 1.2 +/- 10% Half Hard 3 Meter 1.375
8 54 1.2 +/- 10% Half Hard 3 Meter 1.78
9 76 1.5 +/- 15% Half Hard 3 Meter 2.096
10 108 1.5 +/- 15% Hard 3 Meter 2.992

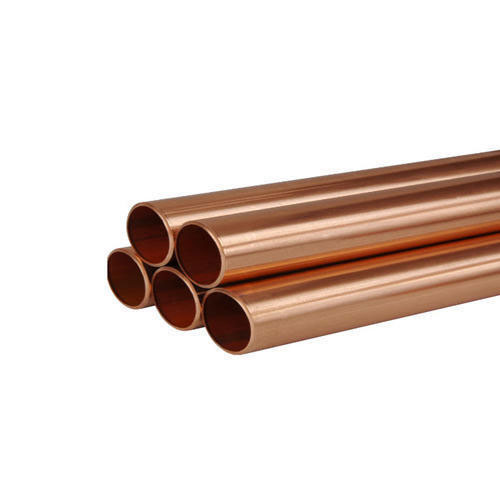

Medical Gas Pipeline System

Medical Gas Pipeline System
Medical Gas Pipeline System

At Shree Extrusions Limited we proudly manufacture SHREE marked Medical Grade Copper Pipe used in Medical Gas Distribution system. Uninterrupted Medical Gas supply is a necessity in hospitals (ICCU, Operation Theater, Wards, and Nursery etc.) Pipes facilitate this in most effective manner.













Product Details :
StandardEN 13348 / BS EN 1057
Outer Diameter10 - 108 mm
Wall Thickness0.6 - 1.5 mm
Wall Thickness Tolerance+/- 10%
TemperHalf Hard
Length3 mtr
