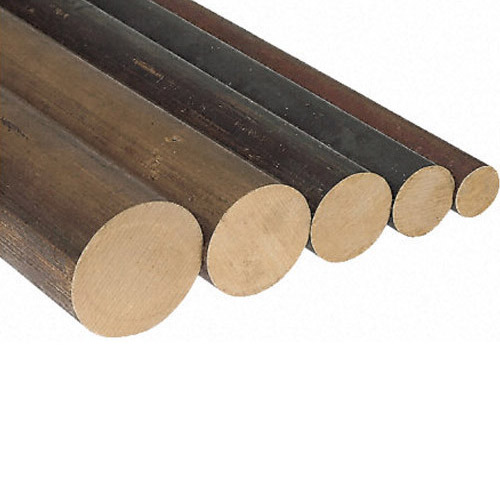

C31600 Nickel Leaded Commercial Bronze Rods

C31600 Nickel Leaded Commercial Bronze Rods
C31600 Nickel Leaded Commercial Bronze Rods
The C Nickel Leaded Commercial Bronze C31600 is the combination of 89% copper, 8% zinc, 2% lead and also contains 1% nickel. The alloy is resistant towards corrosion with higher tensile and yield strength, which is the result of the addition of nickel to the alloy. The alloy is resistant towards stress cracking and is suitably be used in high strength outdoor applications.

Equivelent Specifications:
SPECIFICATIONS DESIGNATION
BarASTM B140
RodASTM B140
ShapesASTM B140
ValvesMILITARY MIL-V-18436

Chemical Composition:
  Cu Fe Pb Ni P Zn
Min/Max87.5 - 90.50.11.3 - 2.50.7 - 1.20.04 - 0.1Rem
Nominals89.0000-1.90001.00000.70008.1000

Specification:
Joining Technique Suitability
BrazingGood
Butt WeldFair
Capacity for Being Cold WorkedGood
Capacity for Being Hot FormedPoor
Coated Metal Arc WeldingNot Recommended
Gas Shielded Arc WeldingNot Recommended
Machinability rating80
Oxyacetylene WeldingNot Recommended
Seam WeldNot Recommended
SolderingExcellent
Spot WeldNot Recommended


Physical Properties :
Product Property US Customary Metric
Coefficient of Thermal Expansion 10.2 ·10-6 per oF (68-572 F) 18.4 · 10 6? per °C (20-300 C)
Density 32 %IACS @ 68 F 0.187 MegaSiemens/cm @ 20 C
Electrical Conductivity 32.4 ohms-cmil/ft @ 68 F 5.39 microhm-cm @ 20 C
Electrical Resistivity 32.4 ohms-cmil/ft @ 68 F 5.39 microhm-cm @ 20 C
Melting Point Liquid US 1900 F 1038 C
Melting Point Solid US 1895 F 1010 C
Modulus of Elasticity in Tension 17000 ksi 117000 Mpa
Specific Gravity 8.86 8.86
Specific Heat Capacity 0.09 Btu/lb/°F @ 68 F 377.1 J/kg · °K at 293 K
Thermal Conductivity 81.0 Btu · ft/(hr · ft2 ·°F) @ 68 F 140.2 W/m · °K at 20 C

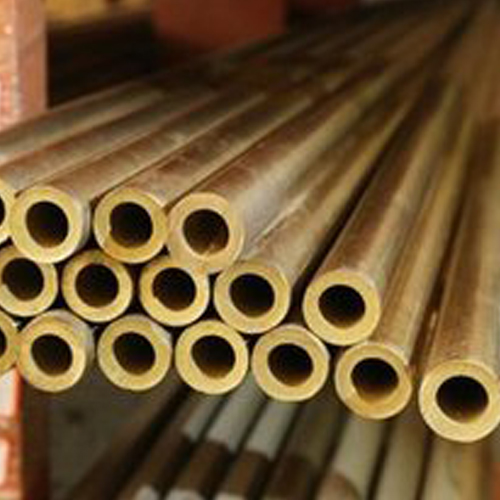

Phosphorus Bronze Hollow Rods

Phosphorus Bronze Hollow Rods
Phosphorus Bronze Hollow Rods
The Phosphorus Bronze Hollow Rods offered by us are from the bronze family Phosphor Bronze, Being of type C 510 Phosphor Bronze (Grade A), these standard alloy finds usage in electrical applications. Further, these are also used in :
Meeting equivalent specifications of ASTM B139/ B139M, these also match reference specifications of SAE J461; SAE J463 and AMS 4625.

Here, we also offer C 544 Phosphor Bronze in Grade B that is a standard alloy and finds application in electrical and many industrial usages. Finding usage in electrical connectors, its excellent machine-ability makes these be used as –
We can offer these with equivalent specifications of ASTM B139/ B139M and Copper Alloy as per UNS C54400 and reference specifications of SAE J461; SAE J463 and ASTM B103.

Specifications:
Phosphros Bronze
  • ASTM B103 C 51000
  • SAE J 463 C 51000
  • BS 2874 PB 102

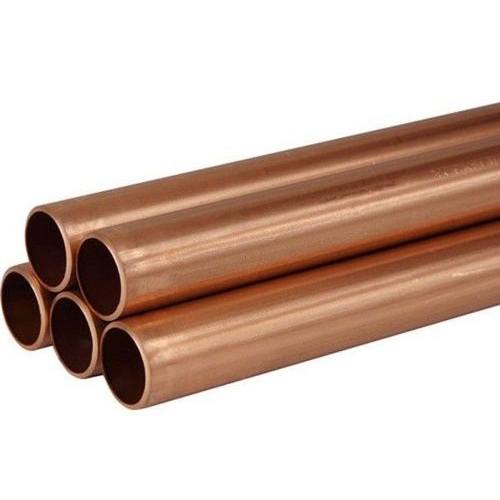

Silicone Bronze Hollow Rods

Silicone Bronze Hollow Rods
Silicone Bronze Hollow Rods
We are one of the leading names in the field of offering our customers Silicone Bronze Hollow Rods. These are designed and developed as per ASTM-B150C66200 BS:2874C107 and IS 10569/05 NR. EQUIVALENT SPEC. ASTMBC66200. Featuring annealed finish, these bronze rods are made available in sizes of 6 to 15, 15 to 50, 50 to 80 and 80 and above. These rods also have excellent capacity for being Hot Formed and its machine-ability rating is 80%. Further, it has excellent suitability for soldering and brazing and finds application in applications like in Hot Forged Components, Gas Valves bodies, Gears and Marine hardware.



Specifications:
Aluminum Silicon Bronze
  • ASTM B 150 C 66200
  • SAE J 463 C 66200

Chemical Requirements CuAl7Si2
Copper Remainder
Aluminium 6.3 to 7.60%
Iron 0.30% max
Nickel 0.25% max
Manganese 0.10% max
Tin 0.20% max
Lead 0.05% max
Zinc 0.40% max
Silicon 0.10% max
Total Imp. Excl. Mn 0.50% max
Physical Properties
Condition Size T.S.Kg/mm2 EL% Min
Annealed / As Manufactured 6 to 15
15 to 50
50 to 80
80 & above
620
575
515
485
9%
12%
12%
15%
Fabrication Properties
Capacity for being
Cold Worked Not Suitable
Hot Formed Excellent
Machinability Rating 80%
Suitability for Soldering Excellent
Suitability for Brazing Good
Uses
Hot Forged Components, Gas Valves bodies, Gears, Marine hardware
