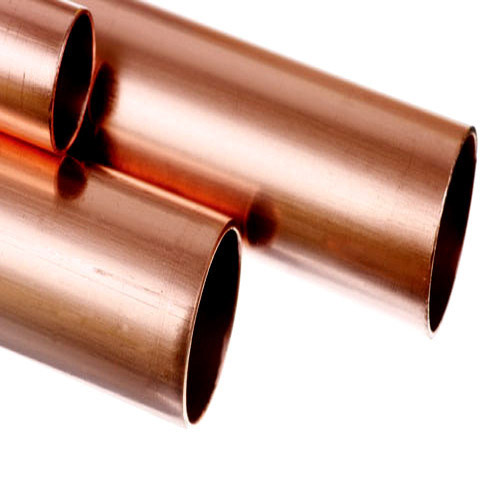

DLP Copper Alloy Pipe

Using latest technology & optimum quality raw materials, we are manufacturing and exporting our clients a wide assortment of DLP Copper Alloy Pipe. Owing to their salient features such as durability, corrosion & rust resistance, high tensile strength and unmatched performance, these Industrial Copper Tubes find applications in varied industries. Our products pass through stringent quality checks before final dispatch to ensure that the clients get a defect free range of copper tubes.
These copper tubes are also well recognized in the markets for their salient features such as :

• Superior durability
• Superior corrosion & rust resistance
• High tensile strength
• Delivering unmatched performance

As these DLP Copper Tubes find usage in varied industries, these are made to pass through stringent quality checks so as to ensure clients get defect free range of Deoxidized Low Residual Phosphorous/DLP copper tubes in wide range of sizes. Meeting the specific needs of customers, we can offer these as per ASTM and other specifications.

Product Applications:

• Electrical Components
• Locomotive Boilers
• Plumbing
• Cable Terminal
• Engineering Application
• Instrumentation

Specifications:

DLP Copper

ASTM B 68 C 12200 ASTM B 75 DLP C12000 BS 2871 Part 2 C 101 BS 2871 Part 3 C 106 EN 12451 DHP JIS H3300 C 1220

Chemical Requirements
Copper	99.85% min
Phosphorus	0.013 to 0.05%
Total Imp. Excl. Mn	0.06% max
Physical Properties
Condition	T.S.Kg/mm 2	EL% Min
Annealed	21.5	33%
As manufactured	23.5	13%
Fabrication Properties
Capacity for being
Cold worked	Excellent
Hot formed	Excellent
Suitability for soldering	Good
Suitability for Brazing	Good
Immunity to hydrogen	Excellent
Embrittlement
Uses
General Engineering Purpose & Electrical Component

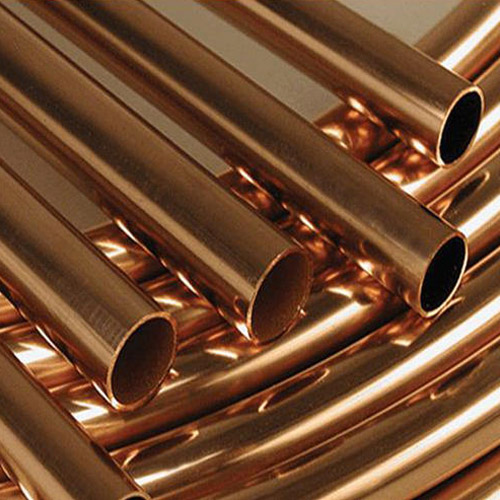

We have with us rich process expertise so as to successfully handle the demands of ETP Copper Pipe. These are made available by us in diverse grades, dimensions as well as thickness options and are available at affordable prices so as to effectively meet clients' specific budgetary requirements. Being durable and sturdy in construction, these are corrosion resistant as well as deliver high performance standards.

Some of the specific features of these Electrolytic Tough Pitch (ETP) copper tubes are

• Have high electrical & thermal conductivity
• Have good corrosion resistance
• Have good solder-ability
• Have excellent hot and cold workability
• Have high ductility
• Are in conformance to ASTM and other industry specifications
• Highly suitable for usage areas like general engineering, heat exchangers, solar panel, hardware areas

Product Applications:

• Some of the areas where these are used in include:
• Defense & Railways
• Electrical & Electronic industry
• Refrigeration industry
• Heat Exchangers & Solar Panels
• Hardware & General Engineering applications

Specifications:

EC / ETP Copper

ASTM B 68 C 12200 ASTM B 75 DLP C12000 BS 2871 Part 2 C 101 BS 2871 Part 3 C 106 EN 12451 DHP JIS H3300 C 1220
