Copper Nickel Tubes
Shree Extrusions Limited
BRASS ALLOYS
BRONZE ALLOYS

COPPER ALLOYS

Copper Nickel Rods

95/5 Copper Nickel Rods

Copper Nickel Rods 95
Excellent hot and cold workability; good forge ability. Fabricated by bending, coining, coppersmith, drawing and upsetting, hot forging and pressing, knurling, roll threading, shearing, spinning, swaging, and stamping. Good to excellent. Susceptible to galvanic corrosion when coupled with iron, aluminum, magnesium, leads, tin, and zinc. Good resistance to atmospheric, brackish water, sea water, and non-oxidizing acid corrosion, but avoid heating in oxidizing atmospheres or exposing to oxidizing acids, moist halogens, sulfides, ammonia, or solutions with ammonium ions.



Specification :
95/5 Copper Nickel
  • ASTM B 111 C 70400
  • ASME SB 111
  • C 70400/ BS 2870 CN 101
  • ISO 1635 CuNi5Fe1MN
  • JIS C 2532 GCN10

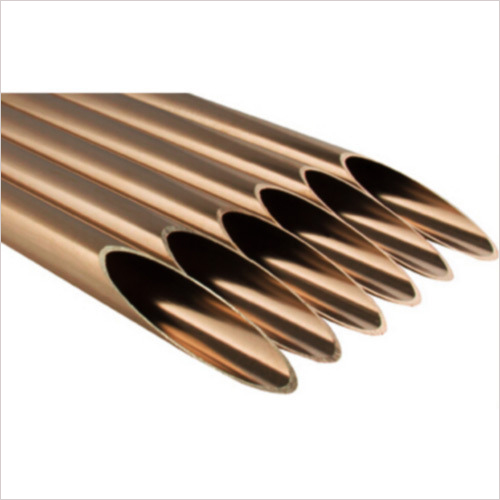

90/10 Copper Nickel Rods

Copper Nickel Rods 90-10
We are reckoned amongst the trusted manufacturers and exporters of a wide range of 90/10 Copper Nickel Rods Tubes. Known for their flexibility, high corrosion resistance, superior tensile strength, trouble free installation and maintenance, these are in demand in different industries. To ensure complete client satisfaction, the entire array of 90/10 Copper Nickel Rods Tubes is examined thoroughly on standard quality parameters before final delivery.






Specification :
90/10 Copper Nickel Rods
  • ASTM B 111 C 70600
  • ASME SB 111 C 70600
  • BS 2871 Part 3 CN 102
  • EN 12451 CuNi10 Fe 1Mn
  • NFA51 102 CuNi10 Fe1Mn
  • JIS H 3300 C 7060

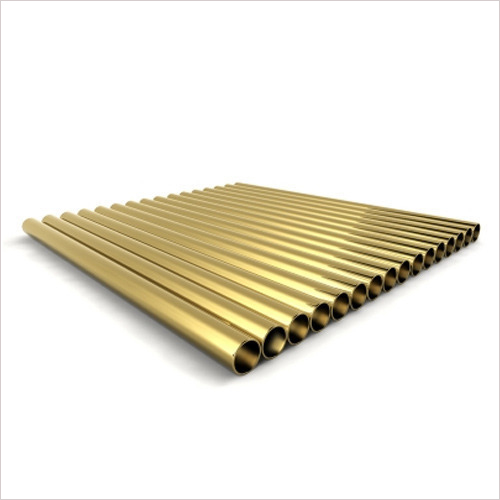

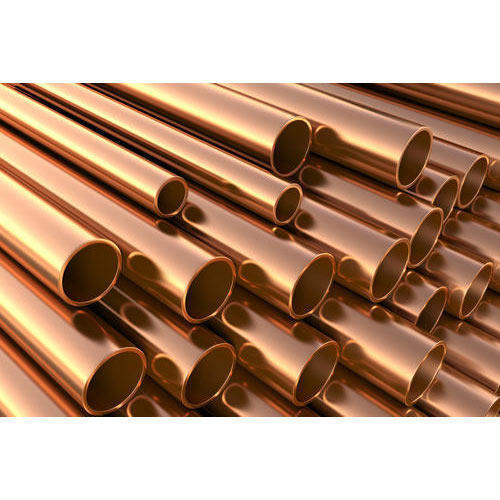

70/30 Copper Nickel Rods

Copper Nickel Rods 70-30
Backed by latest technologies and dexterous workforce, we are able to manufacture, supply and export an impeccable gamut of 70/30 Copper Nickel Tubes, Cupro Nickel Tubes. These are machined in line with the set industry standards using qualitative raw materials that are sourced from authentic vendors of the domain. Our 70/30 Copper Nickel Tubes are sturdy in construction, dimensionally accurate, corrosion resistant, easy to install and maintenance free. Available in different standard specifications, the tubes can also be customized as per the clients' specifications at nominal prices.



Specification :
70/30 Copper Nickel
  • ASTM B 111 C 71500
  • ASME SB 111 C 71500
  • BS 2871 part 3 CN 107
  • EN 12451 CuNi 30 Fe 1 Mn
  • NFA 51 102 CuNi 30 Fe 1 Mn
  • JIS H 3300 C 7150


BS 2871 PART III/72 CN 102 & 07 EQUIVALENT SPEC. ASTMB C70600,71500 & 70400
Chemical Requirements C70600 C71500 C70400
Copper Remainder Remainder Remainder
Iron 1.0 to 2.0% 0.4 to 1.0% 1.3 to 1.7%
Nickel 10 to 11% 30 to 32% 4.08 to 6.02%
Manganese 0.5 to 1.0% 0.5 to 1.5% 0.3 to 0.8%
Total Imp. 0.30% max. 0.30% max. 0.30% max.

Physical Properties
Condition T.S. Kg/mm2 EL% Min T.S. Kg/mm2 EL% Min
Annealed (O) 35 35% 37.5-46 30%
As manufactured (M) 44 min - 51 min -

Further Tests

Uses
Gr I :

Excellent corrosion resistant to turbulently used in condensers for coastal power plants, petroleum refineries and chemical plants.


Gr II :

High impingement corrosion resistant to brackish sea water at velocities upto 3 to 4 m/sec used in desalination plants and other sea water condenser application




CuNi2 Resistance Wire

CuNi2 Resistance Wire
Copper-nickel alloy (CuNi alloy) with low resistivity for use at temperatures up to 300°C (570°F).
CuNi2.2 is typically used for low-temperature applications such as heating cables in electric blankets and pillows.









Chemical composition :
Ni % Cu %
Nominal composition 2.2 Bal


Mechanical properties:
Wire size Yield strength Tensile strength Elongation
Ø Rp0.2 Rm A
Mm MPa MPa %
1.00 110 240 30

Physical properties:
Density g/cm3 8.9
Electrical resistivity at 20°C O mm2/m 0.05


Temperature factor of resistivity:
Temperature°C3 20 100 200 300
Ct 1.00 1.11 1.25 1.40


Coefficient of thermal expansion:
Temperature°C3 Thermal Expansion x10-6/K
20 - 100 16.5


Thermal conductivity:
Temperature°C3 20
W m-1 K-1 130


Specific heat capacity:
Temperature°C3 20
kJ kg-1 K-1 0.380


Melting point °C 1090
Max continuous operating temperature in air °C 300
Magnetic properties The material is non-magnetic


CuNi6 Resistance Wire

CuNi6 Resistance Wire
CuNi6 is a copper-nickel alloy (CuNi alloy) with low resistivity suitable for use at temperatures up to 300°C (570°F).
Wire in CuNi6 is typically used for low-temperature applications such as heating cables.








Chemical composition :
Ni % Cu %
Nominal composition 6.0 Bal


Mechanical properties:
Wire size Yield strength Tensile strength Elongation
Ø Rp0.2 Rm A
Mm MPa MPa %
1.00 110 280 30

Physical properties:
Density g/cm3 8.9
Electrical resistivity at 20°C O mm2/m 0.10


Temperature factor of resistivity:
Temperature°C3 20 100 200 300
Ct 1.00 1.06 1.11 1.19


Coefficient of thermal expansion:
Temperature°C3 Thermal Expansion x10-6/K
20 - 100 16


Thermal conductivity:
Temperature°C3 20
W m-1 K-1 90


Specific heat capacity:
Temperature°C3 20
kJ kg-1 K-1 0.380


Melting point °C 1090
Max continuous operating temperature in air °C 300
Magnetic properties The material is non-magnetic


CuNi11 Resistance Wire

CuNi11 Resistance Wire
CuNi11 is a copper-nickel alloy (CuNi alloy) with medium-low resistivity for use at temperatures up to 400°C (750°F).


CuNi11 is typically used for applications such as heating cables, fuses, shunts, resistors and various types of controllers.





Chemical composition :
Ni % Cu %
Nominal composition 11.0 Bal


Mechanical properties:
Wire size Yield strength Tensile strength Elongation
Ø Rp0.2 Rm A
Mm MPa MPa %
1.00 130 300 30

Physical properties:
Density g/cm3 8.9
Electrical resistivity at 20°C O mm2/m 0.15


Temperature factor of resistivity:
Temperature°C3 20 100 200 300
Ct 1.035 1.07 1.11 1.15


Coefficient of thermal expansion:
Temperature°C3 Thermal Expansion x10-6/K
20 - 100 16


Thermal conductivity:
Temperature°C3 20
W m-1 K-1 60


Specific heat capacity:
Temperature°C3 20
kJ kg-1 K-1 0.380


Melting point °C 1090
Max continuous operating temperature in air °C 400
Magnetic properties The material is non-magnetic
