Copper Nickel

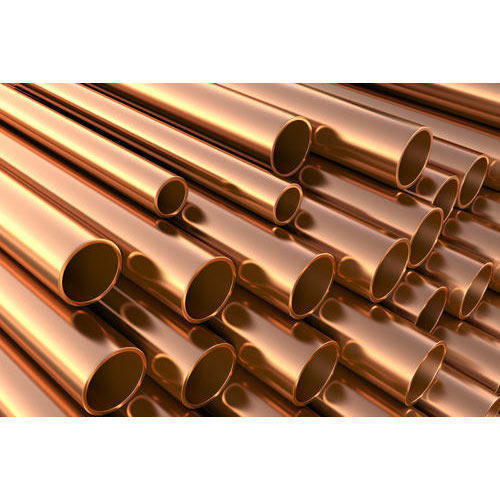

The copper nickel alloy is the low resistivity alloy used at temperature range up to 300°C (570°F). The alloy is mainly used in heating cables in electric pillows and blankets. The medium resistivity and low temperature coefficient of resistance also make these alloys ideal for control resistors and thermocouples.


Chemical Composition:

	Ni %	Cu %
Nominal composition	2.2	Bal.

Mechanical properties:

Wire size	Yield strength	Tensile strength	Elongation
Ø	Rp0.2	Rm	A
Mm	MPa	MPa	%
1.00	100	240	30

Physical Properties:

Density g/cm3	8.9
Electrical resistivity at 20°C O mm2/m	0.05

Temperature factor of resistivity:

Temperature°C	20	100	200	300
Ct	1.00	1.11	1.25	1.40

Coefficient of thermal expansion:

Temperature°C	Thermal Expansion x10-6/K
20 - 100	16.5

Thermal conductivity:

Temperature°C	20
W m-1 K-1	130

Specific Heat Capacity:

Temperature°C	20
kJ kg-1 K-1	0.380
Melting point °C	1090
Max continuous operating temperature in air °C	300
Magnetic properties	The material is non-magnetic

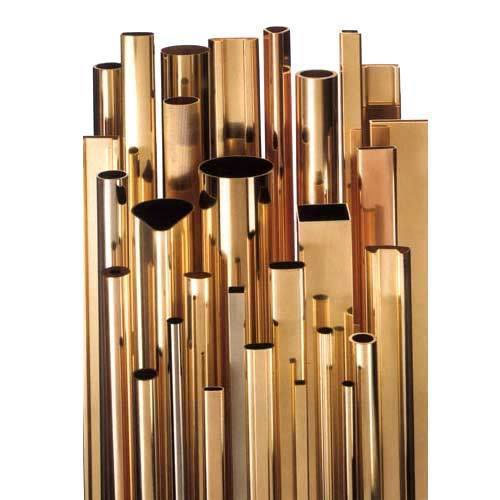

The C70400 Copper-Nickel alloy is excellent on hot and cold workability and is resistant towards atmospheric, brackish water, sea water and non-oxidizing acid corrosion.

Typical uses

• Industrial: Condensers, Condenser Plates, Evaporator Tubes, Ferrules, Heat Exchanger Tubes, Corrosion Resistant Corrosion Resistant, Petrochemicals, Salt Water, Erosion and Impingement, Moderate Strength, Retains Strength at High Temperatures.
• Marine : Condenser Intake Systems, Salt Water Piping

Equivelent Specifications:

SPECIFICATIONS	DESIGNATION
ISO	CuNi5Fe1Mn
BS	CN 101
Russian	MNZ5-1

Chemical Composition:

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	1.3 - 1.7	0-.05	0.3-0.8	29.0 - 33.0	0-1.0

Common Fabrication Processes:

• Forming and Bending
• Welding

Thermal Properties
Treatment	Minimum*	Maximum*
*Measured in Fahrenheit
Annealing	1050	1500
Hot Treatment	1500	1750

Mechanical Properties:

Form	Temper Code	Tensile Strength (ksi)	YS-0.5% Ext (ksi)	Elongation (%)	Rock well B scale	Rock well F scale	Rock well 30T scale	YS- 0.2% Offset
Strip	H02	57 Typ		11 Typ	67 Typ		65 Typ	55 Typ
	H01	51 Typ		21 Typ	54 Typ		57 Typ	40 Typ
	O61	38 Typ	12 Typ	41 Typ	8 Typ
	H06	70 Typ		3 Typ	75 Typ		69 Typ	69 Typ
	H04	64 Typ		5 Typ	72 Typ		68 Typ	63 Typ
	H08	77 Typ		2 Typ	76 Typ		70 Typ	76 Typ
Tube	H55	48 Typ	36 Typ	18 Typ		67 Typ
	OS025	41 Typ	14 Typ	46 Typ		58 Typ
* Measured at room temperature, 68°F (20°C).

Physical Properties:

Melting Point - Liquidus°F	2050
Densitylb/cu in. at 68°F	0.323
Specific Gravity	8.94
Electrical Conductivity% IACS at 68°F	14
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F	37
Coefficient of Thermal Expansion 68-57210?6 per °F (68 – 572°F)	9.7
Specific Heat CapacityBtu/ lb /°F at 68°F	0.09
Modulus of Elasticity in Tensionksi	17000
Modulus of Rigidityksi	6400

Fabrication Properties:

Technique	Suitability
Soldering	Excellent
Brazing	Excellent
Oxyacetylene Welding	Fair
Gas Shielded Arc Welding	Excellent
Coated Metal Arc Welding	Good
Spot Weld	Good
Seam Weld	Good
Butt Weld	Good
Capacity for Being Cold Worked	Excellent
Capacity for Being Hot Formed	Good
Machinability Rating	20

Specification:

Form	Application	System	Standard	Description
Pipe		ASTM	B466	Seamless Copper-nickel Pipe And Tube
Tube	Condenser Tube	ASME	SB111	Copper And Copper Alloy Seamless Condenser Tubes & Ferrule Stock
		ASME	SB359	Copper & Copper Alloy Seamless Condenser & Heat Exchanger Tubes With Integral Fins
		ASME	SB466	Seamless Copper-nickel Pipe And Tube
		ASME	SB543	Welded Copper And Copper Alloy Tube
	Condenser Tube	ASTM	B111	Copper And Copper Alloy Seamless Condenser Tubes And Ferrule Stock
		ASTM	B359	Copper And Copper-alloy Seamless Condenser And Heat Exchanger Tubes With Integral Fins
		ASTM	B395	U-bend Seamless Copper And Copper Alloy Heat Exchanger And Condenser Tubes
		ASTM	B466	Seamless Copper-nickel Pipe And Tube
		ASTM	B543	Welded Copper And Copper Alloy Heat Exchanger Tube

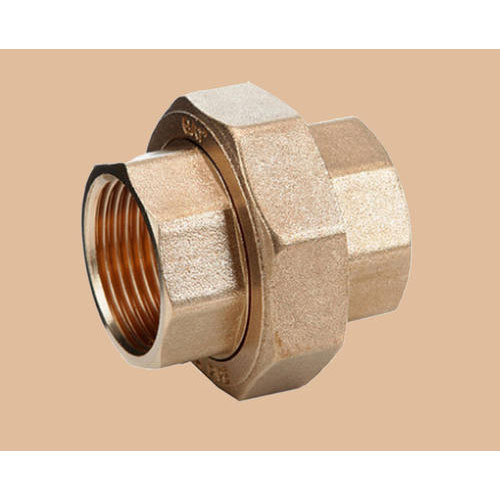

CuNi6 is a copper-nickel alloy (CuNi alloy) with low resistivity suitable for use at temperatures up to 300°C (570°F). The alloy is used in forming wires that are typically used for low-temperature applications such as heating cables.

Chemical Composition:

	Ni %	Cu %
Nominal composition	6.0	Bal.

Mechanical properties:

Wire size	Yield strength	Tensile strength	Elongation
Ø	Rp0.2	Rm	A
Mm	MPa	MPa	%
1.00	100	280	30

Physical Properties:

Density g/cm3	8.9
Electrical resistivity at 20°C O mm2/m	0.10

Temperature factor of resistivity:

Temperature°C	20	100	200	300
Ct	1.00	1.06	1.11	1.19

Coefficient of thermal expansion:

Temperature°C	Thermal Expansion x10-6/K
20 - 100	16

Thermal conductivity:

Temperature°C	20
W m-1 K-1	90

Specific Heat Capacity:

Temperature°C	20
kJ kg-1 K-1	0.380
Melting point °C	1090
Max continuous operating temperature in air °C	300
Magnetic properties	The material is non-magnetic

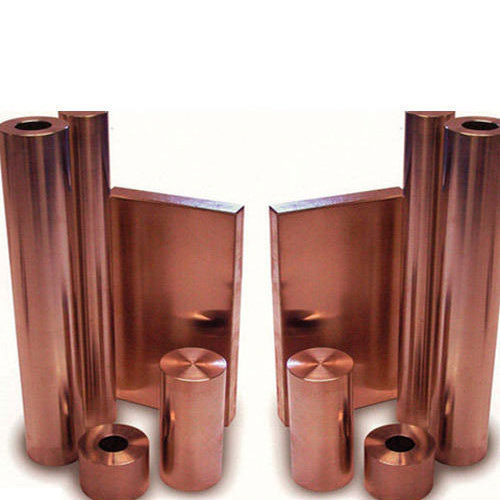

The C70600 Copper Nickel is the alloy that offer corrosion resistance in salt water environments. The alloy contains 10-30 percent of nickle with addition of iron and manganese, which are necessary to maintain resistance towards corrosion.

Typical Uses for C70600 Copper Nickel "90/10":

• AUTOMOTIVE :  Power Steering Tube, Brake Lines
• CONSUMER : Screw Lamp Bases
• INDUSTRIAL : Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators
• MARINE : Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses
• PLUMBING : Flanges

Equivelent Specifications:

SPECIFICATIONS	DESIGNATION
ISO	CuNi10Fe1Mn
Europen	CuNi10Fe1Mn
BS	CN 102
JIS	C 7060
Russian	MNZMo10-1-1

Chemical Composition:

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	1.0 - 1.8	0.05	1	9.0 - 11.0	1
Nominals	88.6	1.4	-	-	10	-

Specification:

End Product	Specification
Bar	ASTM B151, B122, MILITARY MIL-C-15726
Pipe, Seamless	ASME SB466, ASTM B466
Pipe, Welded	ASME SB467, ASTM B608, B467
Plate	ASTM B122, MILITARY MIL-C-15726
Plate, Clad	ASTM B432
Plate, Condenser Tube	ASME SB171, ASTM B171, SAE J463, J461
Rod	ASTM B151, MILITARY MIL-C-15726
Rod, Welding	AWS A5.15
Sheet	ASTM B122, MILITARY MIL-C-15726, SAE J463, J461
Strip	ASTM B122, MILITARY MIL-C-15726
Tube, Condenser	ASME SB111, ASTM B552, B111, MILITARY MIL-T-15005, SAE J463, J461

Fabrication

Joining Technique	Suitability
Brazing	Excellent
Butt Weld	Excellent
Capacity for Being Cold Worked	Good
Capacity for Being Hot Formed	Good
Coated Metal Arc Welding	Good
Gas Shielded Arc Welding	Excellent
Machinability Rating	20
Oxyacetylene Welding	Fair
Seam Weld	Good
Soldering	Excellent
Spot Weld	Good

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	9.5 ·10-6 per oF (68-572 F)	17.1 ·10-6 per oC (20-300 C)
Density	0.323 lb/in3 at 68 F	8.94 gm/cm3 @ 20 C
Electrical Conductivity	9 %IACS @ 68 F	0.053 MegaSiemens/cm @ 20 C
Electrical Resistivity	115.0 ohms-cmil/ft @ 68 F	19.12 microhm-cm @ 20 C
Melting Point - Liquidus	2100 F	1149 C
Melting Point - Solidus	2010 F	1099 C
Modulas of Elasticity in Tension	18000 ksi	124000 MPa
Modulus of Rigidity	6800 ksi	46880 MPa
Specific Gravity	8.94	8.94
Specific Heat Capacity	0.09 Btu/lb/oF at 68 F	377.1 J/kg · oK at 293 K
Thermal Conductivity	26.0 Btu · ft/(hr · ft2·oF)at 68F	45.0 W/m · oK at 20 C

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

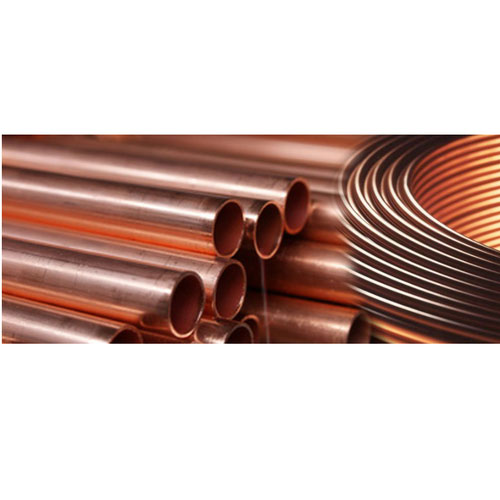

Cu11 is a copper alloy (Cu alloy) with medium-low resistivity for use at temperatures up to 400°C (750°F). The alloy Cu11 is typically used for applications such as heating cables, fuses, shunts, resistors and various types of controllers.

Specification:

Diameter : 8mm To 100 mm
Density g/cm3 : 8.9 g/cm3
Temperature: 20 Degree C
Length : 8mm To 100 mm



Chemical Composition:

	Ni %	Cu %
Nominal composition	11.0	Bal.

Mechanical properties:

Wire size	Yield strength	Tensile strength	Elongation
Ø	Rp0.2	Rm	A
Mm	MPa	MPa	%
1.00	130	300	30

Physical Properties:

Density g/cm3	8.9
Electrical resistivity at 20°C O mm2/m	0.15

Temperature factor of resistivity:

Temperature°C	20	100	200	300	400
Ct	1.00	1.035	1.07	1.11	1.15

Coefficient of thermal expansion:

Temperature°C	Thermal Expansion x10-6/K
20 - 100	16

Thermal conductivity:

Temperature°C	20
W m-1 K-1	60

Specific Heat Capacity:

Temperature°C	20
kJ kg-1 K-1	0.380
Melting point °C	1090
Max continuous operating temperature in air °C	400
Magnetic properties	The material is non-magnetic

Spec Equivalents: ASTM B151, MIL C15726F

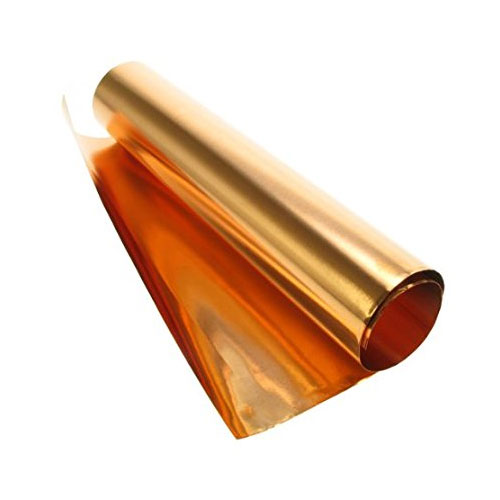

The C71500 COPPER NICKEL "70/30" alloy is the corrosion resistant alloy mainly used in salt water environment. The alloy is the combination of nickle, iron and manganese that helps in maintaining good corrosion resistance and is commonly used in valves, and pump components.

Applications:

• Industrial Applications :  Pump Impellers, Heat Exchanger Tubes, Evaporator Tubes, Distiller Tubes, Condenser Plates, Refrigerators, Process Equipment, Condenser Components, Ferrules, Welding Backing Rings, Flexible Metal Hose, Weld Wire, Boiler Parts, Condensers, Propeller Sleeves, Heat Exchanger Components
• Marine Applications : Salt Water Flanges, Salt Water Piping, Valve Bodies, Sea Water Service, Fittings, Sea Water Condensers, Salt Water Pipe Fittings, Water Boxes - Salt Water Applications, Pump Bodies and Internal Parts-Sea Water

Chemical Composition:

	Cu	Fe	Pb	Mn	Ni	Zn
Min/Max	Rem	0.40 - 1.0	0.05	1	29.0 - 33.0	1
Nominals	69.5	0.5	-	-	30	-

Specifications

End Product	Specification
Bar	ASTM B122, B151, MILITARY MIL-C-15726, SAE J461, J463
Bolts	ASTM F468
Electrode, Welding	AWS A5.6, MILITARY MIL-E-22200/4
Nuts	ASTM F467
Pipe, Seamless	ASME SB466, ASTM B466
Pipe, Welded	ASTM B608, B467
Plate	ASTM B122, MILITARY MIL-C-15726, SAE J461, J463
Plate, Clad	ASTM B432
Plate, Condenser Tube	ASME SB171, ASTM B171, SAE J463, J461
Rod	ASTM B151, MILITARY MIL-C-15726
Screws	ASTM F468
Sheet	ASTM B122, MILITARY MIL-C-15726, SAE J463, J461
Strip	ASTM B122, MILITARY MIL-C-15726, SAE J461, J463
Studs	ASTM F468
Tube, Condenser	ASME SB111, ASTM B552, B111, MILITARY MIL-T-15005, SAE J463, J461
Tube, Finned	ASME SB359, ASTM B359, MILITARY MIL-T-22214
Tube, Seamless	ASME SB466, ASTM B466, MILITARY MIL-T-16420
Tube, U-Bend	ASME SB395, ASTM B395
Tube, Welded	ASME SB543, ASTM B543
Wire	MILITARY MIL-C-15726

Fabrication:

Joining Technique	Suitability
Brazing	Excellent
Butt Weld	Excellent
Capacity for Being Cold Worked	Good
Capacity for Being Hot Formed	Good
Coated Metal Arc Welding	Excellent
Gas Shielded Arc Welding	Excellent
Machinability Rating	20
Oxyacetylene Welding	Good
Seam Weld	Excellent
Soldering	Excellent
Spot Weld	Excellent

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	9.0 ·10-6 per oF (68-572 F)	16.2 ·10-6 per oC (20-300 C)
Density	0.323 lb/in3 at 68 F	8.94 gm/cm3 @ 20 C
Electrical Conductivity	4 %IACS @ 68 F	0.027 MegaSiemens/cm @ 20 C
Electrical Resistivity	225.0 ohms-cmil/ft @ 68 F	37.4 microhm-cm @ 20 C
Melting Point - Liquidus	2260 F	1238 C
Melting Point - Solidus	2140 F	1171 C
Modulas of Elasticity in Tension	22000 ksi	152000 MPa
Modulus of Rigidity	8300 ksi	57230 MPa
Specific Gravity	8.94	8.94
Specific Heat Capacity	0.09 Btu/lb/oF at 68 F	377.1 J/kg · oK at 293 K
Thermal Conductivity	17.0 Btu · ft/(hr · ft2·oF)at 68F	29.4 W/m · oK at 20 C

Sizes Available:

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification
