BRASS ALLOYS
BRONZE ALLOYS

COPPER ALLOYS

Nickel Aluminum Bronze

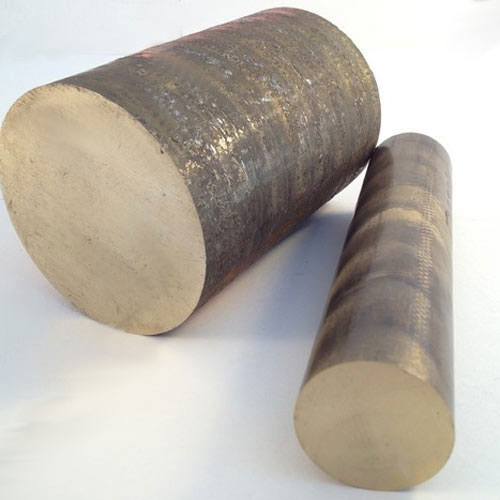

C63000 Nickel Aluminum Bronze

C63000 Nickel Aluminum Bronze
C63000 Nickel Aluminum Bronze
PDF
Spec Equivalents: AMS 4640, SAE J463, QQ-C-465B, ASME SB150, ASTM B-150, B-124, B-171, B-283
C63000 (AMS 4640 - CDA 630) Nickel Aluminum Bronze alloy is an excellent choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion. The addition of nickel increases the strength of alloy without effecting its excellent ductility, toughness and corrosion resistance. Typical applications for C63000 nickel aluminum bronze included aircraft landing gear components, strut bearings, main pistons, trunnion bearings and similar vital components.

Typical Uses :

Equivelent Specifications:
Specifications Designation
ISO CuAl0Ni5Fe4
European CuAl0Ni5Fe4
BS CA 104
JIS C 6301
Russian BrAZN10.4.4

Chemical Composition:
  Al Cu Fe Mn Ni Si Sn Zn
Min/Max 9.0 - 11.0 Rem 2.0 - 4.0 1.5 4.0 - 5.5 0.25 0.2 0.3
Nominals 10 82 3 - 5 - - -

Specification:
End Product Specification
Bar AMS 4640, ASME SB150, ASTM B150, FEDERAL QQ-C-450, SAE J463, J461
Bar, Forging ASTM B124
Bolts ASTM F468
Forgins, Die AMS 4640, ASTM B283, MILITARY MIL-B-16166
Nuts ASTM F467
Plate ASTM B171, FEDERAL QQ-C-450
Plate, Condenser Tube ASME SB171, ASTM B171
Rod AMS 4640, ASME SB150, ASTM B150, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes AMS 4640, ASTM B150, SAE J463, J461
Shapes, Forging ASTM B124
Sheet FEDERAL QQ-C-450

Fabrication:
Joining Technique Suitability
Brazing Fair
Butt Weld Good
Capacity for Being Cold Worked Poor
Capacity for Being Hot Formed Good
Coated Metal Arc Welding Good
Forgeability Rating 75
Gas Sheilded Arc Welding Good
Machinability rating 30
Oxyacetylene Welding Not recommended
Seam Weld Good
Soldering Not recommended
Spot Weld Good

Physical Properties :
Product Property US Customary Metric
Coefficient of Thermal Expansion 9.0 ·10-6 per oF (68-572 F) 16.2 · 10 6? per °C (20-300 C)
Density 0.274 lb/in3 @ 68 F 7.58 gm/cm3 @ 20 C
Electrical Conductivity 7 %IACS @ 68 F 0.041 MegaSiemens/cm @ 20 C
Electrical Resistivity 116.0 ohms-cmil/ft @ 68 F 19.28 microhm-cm @ 20 C
Melting Point Liquid US 1930 F 1054 C
Melting Point Solid US 1895 F 1035 C

Sizes Available
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

C63020 Nickel Aluminum Bronze

C63020 Nickel Aluminum Bronze
C63020 Nickel Aluminum Bronze
PDF
AMS 4590
The C63020 Nickel Aluminum Bronze alloy possess high ductility, high electrical and thermal conductivity, high impact strength, good creep resistance, ease of welding, and low volatility under high vacuum.

Typical Uses :
Equivelent Specifications:
Specifications Designation
ISO CuAl0Ni5Fe4
European CuAl0Ni5Fe4
BS CA 104
JIS C 6301
Russian BrAZN10.4.4

Chemical Composition:
  Al Cr Co Cu Fe Pb Si Ni Sn Zn
Min/Max 10.0 - 11.0 0.05 0.2 74.5 min 4.0 - 5.5 0.03 1.5 4.2 - 6.0 0.25 0.3
Nominals 10.5 - - - 4.7 - - 5.1 - -

Specifications:
End Product Specification
Bar ASTM B150
Pipe ASTM B315
Rod ASTM B150
Shapes AMS 4590, ASTM B150
Tube ASTM B315

Sizes Available:
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

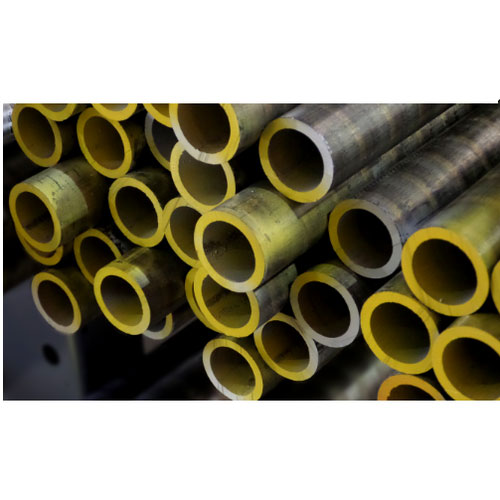

C63200 Nickel Aluminum Bronze

C63200 Nickel Aluminum Bronze
C63200 Nickel Aluminum Bronze
PDF
ASTM B150, QQ-C-465
The C63200 Nickel Aluminum Bronze alloy possess superior salt water corrosion resistance. It also is resistant to cavitation and erosion. Along with the advantage of pressure tightness, this high strength alloy is excellent for welding and is available in many forms at a lower cost to you.

Typical Uses :

Equivelent Specifications:
Specifications Designation
ISO CuAl9Fe4Ni4
UNS C63280
Czech Republic CuAl9Fe4Ni4

Chemical Composition:
  Al Cu Fe Pb Mn Ni Si
Min/Max 8.7 - 9.5 Rem 3.5 - 4.3 0.02 1.2 - 2.0 4.0 - 4.8 0.1
Nominals 9 82 4 - 1.6 4.4 -

Specifications:
End Product Specification
Bar ASTM B150
Bar, Forging ASTM B124
Electrode, Welding AWS A5.6, MILITARY MIL-E-23765/3
Forgings, Die ASTM B283
Plate ASTM B171
Rod ASTM B150
Rod, Forging ASTM B124
Shapes ASTM B150
Shapes, Forging ASTM B124

Fabrication
Joining Technique Suitability
Brazing Fair
Butt Weld Good
Capacity for Being Cold Worked Fair
Capacity for Being Hot Formed Good
Coated Metal Arc Welding Good
Forgeability Rating 70
Gas Sheilded Arc Welding Excellent
Machinability rating 30
Oxyacetylene Welding Not Recommended
Seam Weld Fair
Soldering Fair
Spot Weld Good

Physical Properties
Product Property US Customary Metric
Coefficient of Thermal Expansion 9.0 ·10-6 per oF (68-572 F) 16.2 · 10 6? per °C (20-300 C)
Density 0.276 lb/in3 @ 68 F 7.64 gm/cm3 @ 20 C
Electrical Conductivity 7 %IACS @ 68 F 0.041 MegaSiemens/cm @ 20 C
Electrical Resistivity 148.0 ohms-cmil/ft @ 68 F 24.6 microhm-cm @ 20 C
Melting Point Liquid US 1940 F 1060 C
Melting Point Solid US 1905 F 1041 C
Modulas of Elasticity in Tension 17000 ksi 117000 MPa
Modulas of Rigidity 6400 ksi 44130 MPa
Specific Gravity 7.64 7.64
Specific Heat Capacity .105 Btu/lb/°F @ 68 F 440.0 J/kg · °K at 293 K
Thermal Conductivity 20.0 Btu · ft/(hr · ft2 ·°F) @ 68 F 34.6 W/m · °K at 20 C

Sizes Available:
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

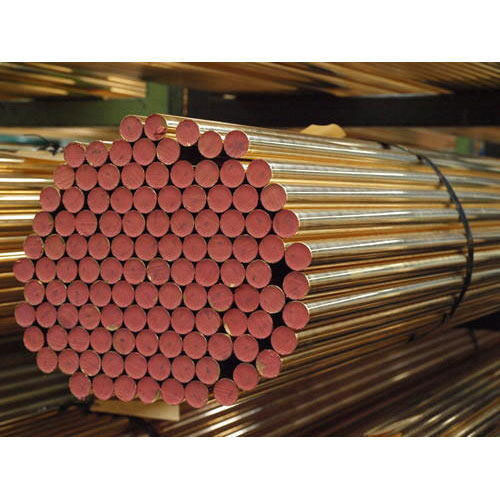

C95500 Nickel Aluminum Bronze 9D

C95500 Nickel Aluminum Bronze 9D
C95500 Nickel Aluminum Bronze 9D
PDF
ASTM B505
C95500 Nickel Aluminum Bronze 9D is available with salt water corrosion resistance. It also is resistant to cavitation and erosion. Along with the advantage of pressure tightness, this high strength alloy is excellent for welding and is available in many forms at a lower cost to you.

Typical Uses :
Chemical Composition:
  Al Cu Fe Mn Ni
Min/Max 10.0-11.5 78.0 min 3.0-5.0 3.5 3.0-5.5
Nominals 11.0000 80.0000 4.0000 - 4.3000

Specifications:
End Product Specification
Centrifugal ASTM B271, SAE J462, J461
Continuous ASTM B505, SAE J462, J461
Ingot ASTM B30
Precision ASTM B806
Sand ASTM B148, B763, SAE J461, J462

Fabrication
Joining Technique Suitability
Brazing Good
Coated Metal Arc Welding Not Recommended
Gas Shielded Arc Welding Not Recommended
Machinability Rating 40
Oxyacetylene Welding Not Recommended
Soldering Excellent

Physical Properties
Product Property US Customary Metric
Coefficient of Thermal Expansion 9.0 ·10-6 per oF (68-572 F) 16.2 ·10-6 per oC (20-300 C)
Density 0.272 lb/in3 at 68 F 7.53 gm/cm3 @ 20 C
Electrical Conductivity 8 %IACS @ 68 F 0.049 MegaSiemens/cm @ 20 C
Electrical Resistivity 122.8 ohms-cmil/ft @ 68 F 20.41 microhm-cm @ 20 C
Magnetic Permeability (As Cast) 1.32 1.32
Magnetic Permeability (TQ50 temper) 1.2 1.2
Melting Point - Liquidus 1930 F 1054 C
Melting Point - Solidus 1900 F 1038 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Poisson's Ratio 0.32 0.32
Specific Gravity 7.53 7.53
Specific Heat Capacity 0.1 Btu/lb/oF at 68 F 419.0 J/kg · oK at 293 K
Thermal Conductivity 24.2 Btu · ft/(hr · ft2·oF)at 68F 41.9 W/m · oK at 20 C

Sizes Available:
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

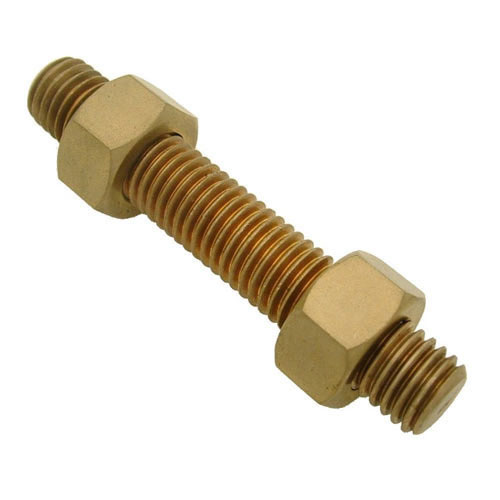

C62730 Nickel Aluminum Bronze (NES 833)

C62730 Nickel Aluminum Bronze (NES 833)
C62730 Nickel Aluminum Bronze (NES 833)
Applications :





Equivalent Specifications :
Specifications Designation
BS CA104
EN CW307G
JIS C6301
DIN 2.0966
ISO CuAl10Ni5Fe4
Russian (GOST)


Chemical Composition:
  Cu Pb Sn Zn Fe Ni Al Mg Mn Si
Min/Max REM. 0.05 0.10 0.40 4.0-6.0 4.0-6.0 8.50-11.0 0.05 0.05 0.10


Specifications :
Ingots
Bar
Square
Billets
Plate
Sheet
Flat
Rods
Profiles
Wire
Hollows
Hex
Tubes


Fabrication Properties :
Joining Technique Suitability
Brazing Fair
Butt Weld Good
Capacity for Being Cold Worked Fair
Capacity for Being Hot Formed Good
Coated Metal Arc Welding Good
Gas Shielded Arc Welding Excellent
Machinability Rating 30
Oxyacetylene Welding Fair
Seam Weld Fair
Soldering Fair
Spot Weld Good
Forgeability Rating 70


Mechanical Properties :
Form Tensile N/mm2 (min) 0.2% Proof Stress N/mm2 (min) Elogation on 5.65 gauge length % Izod Value J (min)
<15 mm Dia 680 325 17 -
15 mm – 25 mm Dia 680 325 17 24
25 mm – 100 mm Dia 635 295 17 27
>100 mm Dia 620 245 15 23


Physical Properties :
Melting Point 1035oC
Density 7.5 g/cm3
Specific Gravity
Electrical Conductivity 20C 7 – 10 IACS
Thermal Conductivity 37.7 – 42 W/m.K
Coefficient of Thermal Expansion 20-300 18 x 10-6
Specific Heat Capacity
Modulus of Elasticity 115 GPa
Modulus of Rigidity

Sizes Available:
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

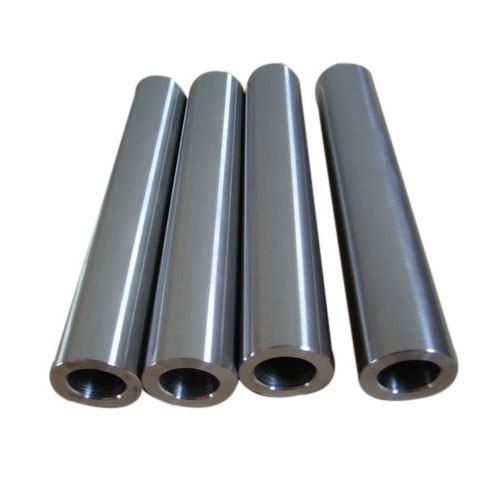

C95800 Alpha Nickel Aluminum Bronze

C95800 Alpha Nickel Aluminum Bronze
C95800 Alpha Nickel Aluminum Bronze
PDF
The C95800 Alpha Nickel Aluminum Bronze is corrosion resistant against salt water, cavitation and erosion. The alloy is having the advantage of pressure tightness and is excellent for welding. It is available in many forms at a lower cost to you.

Cast ASTM: B271, B505, B148 Military/AMS: MIL-B-24480 Other: ABS - 4T

Common Applications :

Equivelent Specifications:
Specifications Designation
ISO CuAl10Fe5Ni5
European CuAl10Fe5Ni5
BS CuAl10Fe5Ni5
JIS C AC703
Russian BrA10ZN4L

Chemical Composition:
  Al Cu Fe Pb Mn Ni Si
Min/Max 8.5-9.5 79.0 min 3.5-4.5 0.03 .8-1.5 4.0-5.0 0.1
Nominals 9 81 4 - 1 4.5 -

Specifications:
End Product Specification
Centrifugal ASTM B271, SAE J462, J461
Continuous ASTM B505, SAE J461, J462
Ingot ASTM B30
Precision ASTM B806
Sand ASTM B806

Fabrication
Joining Technique Suitability
Brazing Fair
Coated Metal Arc Welding Good
Gas Shielded Arc Welding Good
Machinability Rating 50
Oxyacetylene Welding Not Recommended
Soldering Good

Physical Properties
Product Property US Customary Metric
Coefficient of Thermal Expansion 9.0 ·10-6 per oF (68-572 F) 16.2 ·10-6 per oC (20-300 C)
Density 0.276 lb/in3 at 68 F 7.64 gm/cm3 @ 20 C
Electrical Conductivity 7 %IACS @ 68 F 0.041 MegaSiemens/cm @ 20 C
Electrical Resistivity 146.7 ohms-cmil/ft @ 68 F 34.39 microhm-cm @ 20 C
Information not available on website
Magnetic Permeability 1.05 1.05
Melting Point - Liquidus 1940 F 1060 C
Melting Point - Solidus 1910 F 1043 C
Modulas of Elasticity in Tension 16500 ksi 114000 MPa
Poisson's Ratio 0.32 0.32
Specific Gravity 7.64 7.64
Specific Heat Capacity 0.105 Btu/lb/oF at 68 F 440.0 J/kg · oK at 293 K
Thermal Conductivity 20.8 Btu · ft/(hr · ft2·oF)at 68F 36.0 W/m · oK at 20 C

Sizes Available:
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

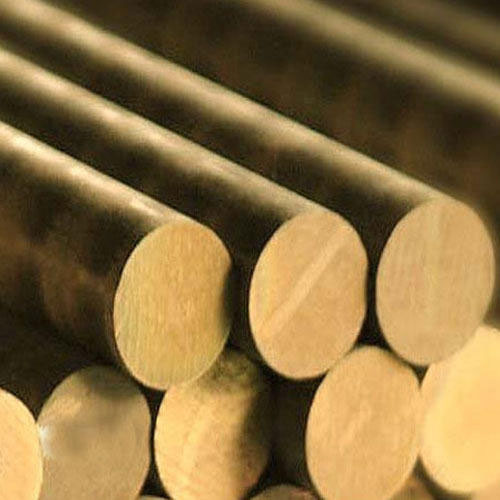

C96900 Nickel Tin Bronze Spinodal

C96900 Nickel Tin Bronze Spinodal
C96900 Nickel Tin Bronze Spinodal
PDF
C96900 Nickel Tin Bronze Spinodal is ideal for using in tough environments. The alloy possess high strength, anti-galling properties, non-magnetic, excellent machinability, corrosion resistance and good bearing properties.

It is used in bushings and bearings for aircraft, industrial equipment, and heavy equipment. It is also used for oil and gas drilling hardware including rotary steerable housings, kelly valve seats and pressure housings.

C96900 in the hot worked and spinodally hardened (AT/TX00) condition exhibits tensile strength up to 140 ksi in a copper nickel tin alloy with excellent machinability.

Typical Uses :

Chemical Composition:
  Cu Ni Fe Mn Nb Pb Sn Zn
Min/Max Reminder 14.5-15.5 0.05 max .05-.3 max 0.1 max 0.02 max 7.5-8.5 0.5max
Nominals - -



Physical Properties
Density 0.325 Lbs. per cubic inch @ 68°F (annealed)
Modulus 21 Elastic modulus in tension x 106  P.S.I.
Electrical Conductivity 9 % IACS at 68°F (annealed)
Thermal Conductivity 22 BTU per foot per hour per °F at 68°F (annealed)
Thermal Expansion 9.1 Inches per inch x 10-6  from 68°F to 572°F

Sizes Available:
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

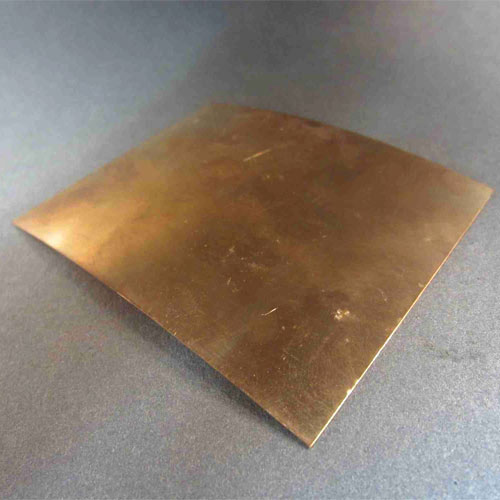

CUAL 10NI5FE4 Nickel Aluminum Bronze

CUAL 10NI5FE4 Nickel Aluminum Bronze
CUAL 10NI5FE4 Nickel Aluminum Bronze
PDF
AMS 4640
CuAL10Ni5Fe4 (AMS 4640) Nickel Aluminum Bronze alloy is an good choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion. The addition of nickel increases the alloys strength without diminishing its excellent ductility, toughness and corrosion resistance. Typical applications include aircraft landing gear components, strut bearings, main pistons, trunnion bearings and similar vital components.

Typical Uses :
Equivelent Specifications:
Specifications Designation
ISO CuAl0Ni5Fe4
European CuAl0Ni5Fe4
BS CA 104
JIS C 6301
Russian BrAZN10.4.4

Chemical Composition:
  Al Cu Fe Mn Ni Si Sn Zn
Min/Max 9.0 - 11.0 Rem 2.0 - 4.0 1.5 4.0 - 5.5 0.25 0.2 0.3
Nominals 10 82 3 - 5 - - -

Specifications:
End Product Specification
Bar AMS 4640, ASME SB150, ASTM B150, FEDERAL QQ-C-450, SAE J463, J461
Bar, Forging ASTM B124
Bolts ASTM F468
Forgins, Die AMS 4640, ASTM B283, MILITARY MIL-B-16166
Nuts ASTM F467
Plate ASTM B171, FEDERAL QQ-C-450
Plate, Condenser Tube ASME SB171, ASTM B171
Rod AMS 4640, ASME SB150, ASTM B150, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes AMS 4640, ASTM B150, SAE J463, J461
Shapes, Forging ASTM B124
Sheet FEDERAL QQ-C-450
Strip FEDERAL QQ-C-450
Tube AMS 4640

Fabrication
Joining Technique Suitability
Brazing Fair
Butt Weld Good
Capacity for Being Cold Worked Poor
Capacity for Being Hot Formed Good
Coated Metal Arc Welding Good
Forgeability Rating 75
Gas Sheilded Arc Welding Good
Machinability rating 30
Oxyacetylene Welding Not recommended
Seam Weld Good
Soldering Not recommended
Spot Weld Good

Physical Properties
Product Property US Customary Metric
Coefficient of Thermal Expansion 9.0 ·10-6 per oF (68-572 F) 16.2 · 10 6? per °C (20-300 C)
Density 0.274 lb/in3 @ 68 F 7.58 gm/cm3 @ 20 C
Electrical Conductivity 7 %IACS @ 68 F 0.041 MegaSiemens/cm @ 20 C
Electrical Resistivity 116.0 ohms-cmil/ft @ 68 F 19.28 microhm-cm @ 20 C
Melting Point Liquid US 1930 F 1054 C
Melting Point Solid US 1895 F 1035 C

Sizes Available:
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification

CW307G Nickel Aluminum Bronze

CW307G Nickel Aluminum Bronze
CW307G Nickel Aluminum Bronze
PDF
AMS 4640
CW307G (AMS 4640) Nickel Aluminum Bronze alloy is an excellent choice for applications involving heavy loads, abrasive wear resistant, friction, abrasive wear and corrosion. The addition of nickel increases the alloys strength without diminishing its excellent ductility, toughness and corrosion resistance. Typical applications include aircraft landing gear components, strut bearings, main pistons, trunnion bearings and similar vital components.

Typical Uses :
Equivelent Specifications:
Specifications Designation
ISO CuAl0Ni5Fe4
European CuAl0Ni5Fe4
BS CA 104
JIS C 6301
Russian BrAZN10.4.4

Chemical Composition:
  Al Cu Fe Mn Ni Si Sn Zn
Min/Max 9.0 - 11.0 Rem 2.0 - 4.0 1.5 4.0 - 5.5 0.25 0.2 0.3
Nominals 10.0000 82.0000 3.0000 - 5.0000 - - -

Specifications:
End Product Specification
Bar AMS 4640, ASME SB150, ASTM B150, FEDERAL QQ-C-450, SAE J463, J461
Bar, Forging ASTM B124
Bolts ASTM F468
Forgins, Die AMS 4640, ASTM B283, MILITARY MIL-B-16166
Nuts ASTM F467
Plate ASTM B171, FEDERAL QQ-C-450
Plate, Condenser Tube ASME SB171, ASTM B171
Rod AMS 4640, ASME SB150, ASTM B150, SAE J463, J461
Rod, Forging ASTM B124
Screws ASTM F468
Shapes AMS 4640, ASTM B150, SAE J463, J461
Shapes, Forging ASTM B124
Sheet FEDERAL QQ-C-450
Strip FEDERAL QQ-C-450
Tube AMS 4640

Fabrication
Joining Technique Suitability
Brazing Fair
Butt Weld Good
Capacity for Being Cold Worked Poor
Capacity for Being Hot Formed Good
Coated Metal Arc Welding Good
Forgeability Rating 75
Gas Sheilded Arc Welding Good
Machinability rating 30
Oxyacetylene Welding Not recommended
Seam Weld Good
Soldering Not recommended
Spot Weld Good

Physical Properties
Product Property US Customary Metric
Coefficient of Thermal Expansion 9.0 ·10-6 per oF (68-572 F) 16.2 · 10 6? per °C (20-300 C)
Density 0.274 lb/in3 @ 68 F 7.58 gm/cm3 @ 20 C
Electrical Conductivity 7 %IACS @ 68 F 0.041 MegaSiemens/cm @ 20 C
Electrical Resistivity 116.0 ohms-cmil/ft @ 68 F 19.28 microhm-cm @ 20 C
Melting Point Liquid US 1930 F 1054 C
Melting Point Solid US 1895 F 1035 C
Modulas of Elasticity in Tension 17500 ksi 121000 MPa
Modulas of Rigidity 6400 ksi 44130 MPa
Specific Gravity 7.58 7.58
Specific Heat Capacity 0.09 Btu/lb/°F @ 68 F 377.1 J/kg · °K at 293 K
Thermal Conductivity 22.6 Btu · ft/(hr · ft2 ·°F) @ 68 F 39.1 W/m · °K at 20 C

Sizes Available:
ROUND RODS 8mm To 70 mm
HEX 10mm To 60mm
SQUARE 10mm To 60mm
FLAT 10mm Min Thickness and max Width 120mm
BILLETS Up to 200 mm
INGOTS As per Specification



Product Range

Brass Wires Specialized Brass Wires Brass Rods Specialized Copper Alloy Rods Ingots & Billet
Copper & Copper Alloy Tubes Bronze Rods Brass Tubes Copper Nickel
BRASS ALLOYS
Leaded Brass Naval Brass Nickel Silver Brass Red Brass Yellow Brass
Other Brass
BRONZE ALLOYS
Aluminum Bronze Silicon Aluminum Bronze Manganese Bronze Nickel Aluminum Bronze
COPPER ALLOYS
Beryllium Chromium Copper Copper Nickel Leaded Copper Other Copper

Home About Us Quality We Provide Industrial Applications Certifications Media Gallery Contact Us Enquiry

Member IndiaMART© Shree Extrusions Limited. All Rights Reserved (Terms of Use)
Developed and Managed by IndiaMART InterMESH Limited
