Naval Brass

C46200 naval brass is the brass with high strength and corrosion resistance. It is ductile and formable with electrical conductivity and is commonly used in manufacturing rolled, forged, stamped and cold-headed products.

Applications :

• Decorative And Architectural Products
• Marine Hardware

Equivalent Specifications:

Specifications	Designation
Czech Republic	CuZn38Sn1
BS	CZ 112
JIS	C 4621

Chemical Composition:

	Cu	Fe	Pb	Sn	Zn
Min/Max	62.0-65.0	.10	.20	.50-1.0	Rem
Nominals	63.5	-	-	.7	-

Specifications:

End Product	Specification
Bar	ASTM B21FEDERAL QQ-B-639
Bolts	ASTM F468
Nuts	ASTM F467
Plate	FEDERAL QQ-B-639
Rod	ASTM B21
Screws	ASTM F468
Shapes	ASTM B21
Sheet	FEDERAL QQ-B-639
Studs	ASTM F468

Physical Properties:

Product Property			US Customary	Metric
Density			0.305 lb/in3 at 68 F	8.84 gm/cm3 @ 20 C
Specific Gravity			8.840	8.84

Sizes Available:

Hollow Rods	Min Bore Size 20 mm and Max OD 100 mm
Round Rods	6mm To 130 mm
Hex	5mm To 60mm
Square	4mm To 60mm
Flat	5mm Min Thickness and max Width 120mm
Profiles / Sections	AS per Customer Drawing
Billets	Up to 200 mm
Ingots	AS per Specification

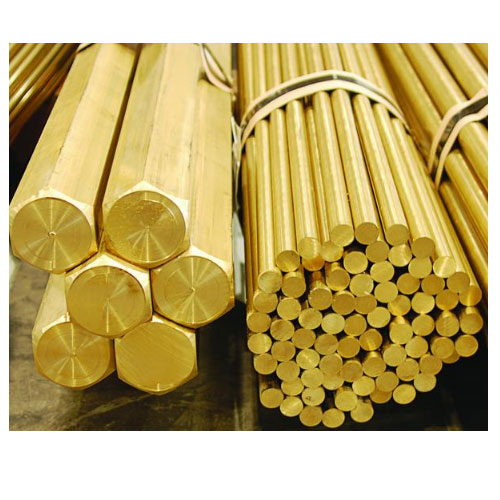

The lead free naval brass is the result of the composition of 60% copper, 39.2% zinc and 0.8% tin. The addition of tin with zinc results in the high corrosion resistance in sea water. This makes the alloy resistant to dezincification that inhibit the impingement by seawater at higher than normal temperatures. The alloy is also appreciated for its resistance to wear, fatigue, galling, and stress corrosion cracking.

Applications :-

• Builders Hardware : Lock Pins
• Electrical : Precision Shipboard Equipment
• Fasteners: Rivets, Bolts, Nuts
• Industrial:Welding Rod, Condenser Plates, Structural Uses, Valve Stems, Balls, Heat Exchanger Tube, Aircraft Turn Buckle Barrels, Bearings, Dies, Golf Ball Production, Pressure Vessels, Bearings, Bushings, Hub Cones
• Marine: Propeller Shafts, Marine Hardware, Decorative Fittings, Shafting, Propeller Shafts, Turn Buckles
• Ordinance: Missile Components
• Plumbing: Fittings: Baffle Plates And Flanges
• Plumbing: Fittings

Equivalent Specifications:

Specifications	Designation
ISO	CuZn38Sn1
Europen	CuZn39Sn1
BS	CZ 133
JIS	C 4640
Russian	L060-1

Chemical Composition:

	Cu	Fe	Pb	Sn	Zn
Min/Max	59.0 - 62.0	.0.1	0.2	0.5 - 1.0	Rem
Nominals	60.0000	-	-	0.7000	39.2000

Specifications:

End Product	Specification
Bar	AMS 4611, 4612, ASTM B21, FEDERAL QQ-B-639, SAE J463, J461
Bar, Forging	ASTM B124
Bolts	ASTM F468
Forgings, Die	ASTM B283
Nuts	ASTM F467
Plate	FEDERAL QQ-B-639
Plate, Clad	ASTM B432
Plate, Condenser Tube	ASME SB171, ASTM B171
Rod	AMS 4611, 4612, ASTM B21, SAE J463, J461
Rod, Forging	ASTM B124
Screws	ASTM F468
Shapes	ASTM B21
Shapes, Forging	ASTM B124
Sheet	FEDERAL QQ-B-639
Strip	FEDERAL QQ-B-639, SAE J463, J461
Studs	ASTM F468
Wire, Metallizing	MILITARY MIL-W-6712

Fabrication:

Joining Technique	Suitability
Soldering	Excellent
Butt Weld	Good
Capacity for Being Cold Worked	Not Recommended
Capacity for Being Hot Formed	Excellent
Coated Metal Arc Welding	Not Recommended
Forgeability Rating	90
Gas Sheilded Arc Welding	Fair
Machinability rating	30
Oxyacetylene Welding	Good
Seam Weld	Fair
Soldering	Excellent
Spot Weld	Good

Physical Properties:

Product Property	US Customary	Metric
Coefficient of Thermal Expansion	11.8 ·10-6 per oF (68-572 F)	21.2 · 10 6? per °C (20-300 C)
Density	0.304 lb/in3 @ 68 F	8.41 gm/cm3 @ 20 C
Electrical Conductivity	26 %IACS @ 68 F	0.152 MegaSiemens/cm @ 20 C
Electrical Resistivity	39.9 ohms-cmil/ft @ 68 F	6.63 microhm-cm @ 20 C
Melting Point Liquid US	1650 F	899 C
Melting Point Solid US	1630 F	888 C
Modulas of Elasticity in Tension	15000 ksi	103400 MPa
Modulas of Rigidity	5600 ksi	38610 MPa
Specific Gravity	8.41	8.41
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F	377.1 J/kg · °K at 293 K

Sizes Available:

Hollow Rods	Min Bore Size 20 mm and Max OD 100 mm
Round Rods	6mm To 130 mm
Hex	5mm To 60mm
Square	4mm To 60mm
Flat	5mm Min Thickness and max Width 120mm
Profiles / Sections	AS per Customer Drawing
Billets	Up to 200 mm
Ingots	AS per Specification

The medium leaded naval brass is used for common fabrication process mainly for marine equipment or the things that is used with water in contact. It is a hard and corrosion resistant material used for both fresh or salt water applications.

Applications :

• Marine Hardware
• Screw Machine Products
• Valve Stems.
• Common Fabrication Processes
• Hot Forging, Pressing And Machining.

Typical Uses :

•  Marine hardware, screw machine products, valve stems.
• Common Fabrication Processes
• Hot forging, pressing and machining.
• Mechanical Properties

Equivelent Specifications:

Specifications	Designation
ISO	CuZn37pb1Sn1
Europen	CuZn37pb1Sn1
Czech Republic	CuZn37pb1Sn1
Portugal	CuZn37pb1Sn1

Chemical Composition:

	Cu	Fe	Pb	Sn	Zn
Min/Max	59.0-62.0	0.10	40-1.0	0.50-1.0	Rem
Nominals	61.5000	-	.7	8	38.0

Applicable Specifications

Product	Specification
Bar	ASTM B21 FEDERAL QQ-B-639
Bar, Forging	ASTM B124
Forgings, Die	ASTM B283
Plate	FEDERAL QQ-B-639
Rod	ASTM B21
Rod, Forging	ASTM B124
Shapes	ASTM B21
Shapes, Forging	ASTM B124
Sheet	FEDERAL QQ-B-639
Strip	FEDERAL QQ-B-639

Fabrication Properties

Joining Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Poor
Capacity for Being Hot Formed	Good
Forgeability Rating	90
Machinability Rating	50

Sizes Available:

Hollow Rods	Min Bore Size 20 mm and Max OD 100 mm
Round Rods	6mm To 130 mm
Hex	5mm To 60mm
Square	4mm To 60mm
Flat	5mm Min Thickness and max Width 120mm
Profiles / Sections	AS per Customer Drawing
Billets	Up to 200 mm
Ingots	AS per Specification

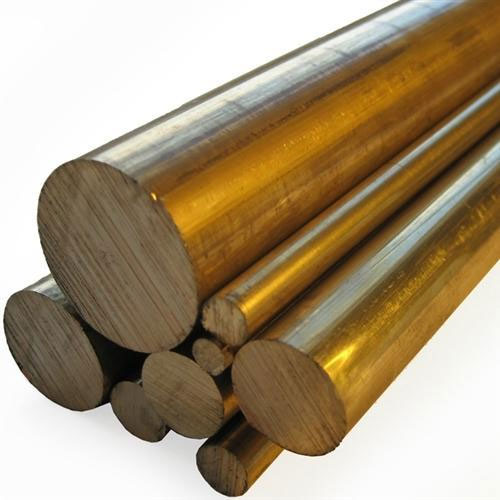

The high leaded naval brass is available in compliance with ASTM B21, AMS 4611 standards and is appreciated for high thermal and electrical conductivity. The material is highly ductile and easy to weld and is also appreciated for creeping resistance and low volatility under high vacuum.

Applications :

• Industrial Applications : Valve Stems, Light Bearings, Gears, Screw Machine Parts, Fasteners
• MARINE Applications : Marine Hardware, Seawater Valve Stems

Equivelent Specifications:

Specifications	Designation
Europen	CuZn36Pb2Sn1
BS	CZ 134
Australia	485

Chemical Composition:

	Cu	Fe	Pb	Sn	Zn
Min/Max	59.0-62.0	0.10	40-1.0	0.50-1.0	Rem
Nominals	61.5000	-	.7	8	38.0

Applicable Specifications

Product	Specification
Bar	ASTM B21 FEDERAL QQ-B-639
Bar, Forging	ASTM B124
Forgings, Die	ASTM B283
Plate	FEDERAL QQ-B-639
Rod	ASTM B21
Rod, Forging	ASTM B124
Shapes	ASTM B21
Shapes, Forging	ASTM B124
Sheet	FEDERAL QQ-B-639
Strip	FEDERAL QQ-B-639

Fabrication Properties

Joining Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Poor
Capacity for Being Hot Formed	Good
Forgeability Rating	90
Machinability Rating	50

Sizes Available:

Hollow Rods	Min Bore Size 20 mm and Max OD 100 mm
Round Rods	6mm To 130 mm
Hex	5mm To 60mm
Square	4mm To 60mm
Flat	5mm Min Thickness and max Width 120mm
Profiles / Sections	AS per Customer Drawing
Billets	Up to 200 mm
Ingots	AS per Specification
