Copper Nickel Tubes
Shree Extrusions Limited
BRASS ALLOYS
BRONZE ALLOYS

Copper Tubes & Copper Alloy Tubes

We are one of the leading and well recognized names in the field of offering of Copper Tubes that find application in Air conditioning and Refrigeration Systems. Over the years, their has been a steady rise in use of copper tube in air-conditioning and refrigeration systems because of the superior quality of copper as a metal and its unique abilities to meet needs of ACR industry. Backed by stringent new requirements, these are designed to achieve superior process efficiency as well as assist in bringing reductions in harmful emissions.

The range we can deliver include but are not limited to Plain Tubes, Pancake Coils Single Layer, Internally Grooved Tubes, Double Layer, Copper Tubes for Water and Gas. Here, we ensure that these are supplied in specified lengths in half hard conditions with ideal temper for cold bending and forming, thus allowing them to easily bend with a bending spring. Some of the other features that make these tubes highly preferred in the industry for hot & cold water, central heating and gas services installations include light weight finish and ability to withstand high internal pressures. Some of the application areas these are ideal for include Drinking Water, Central Heating, Hot and Cold Water, Industrial & Medical Gas Transportation, Copper Tubes for General Engineering applications.

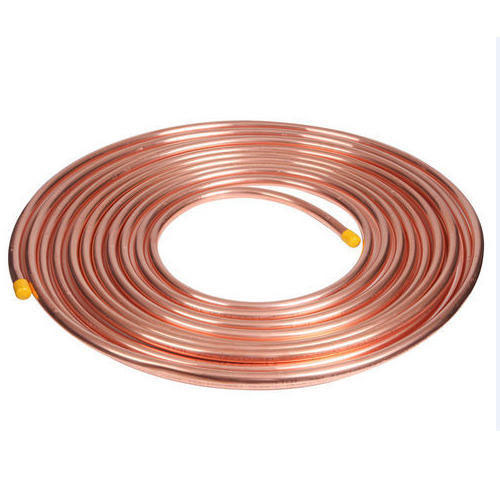

Copper Pan Cake Coils

Copper Pan Cake Coils
Copper Pan Cake Coils made available by us find application in different industries and come in superior construction standards that provide in these :

Here, our production team ensures that these are designed in line with ISO 9001:2008 standards with the Copper Pan Cake Coils tested on parameters like

These tubes are extremely strong with spring effect in them that make these widely used in different industries. Designed to provide faultless performance for long service periods, these Copper Pancake Coils come in different dimensions and can also be customized as demanded by the customers.
Attributes:

Applications:


Specifications:
Outside diameter
  • 4mm - 22.23mm
Thickness
  • 0.3mm - 3.5mm
Length
  • 15m, 18m, 30m, 50m

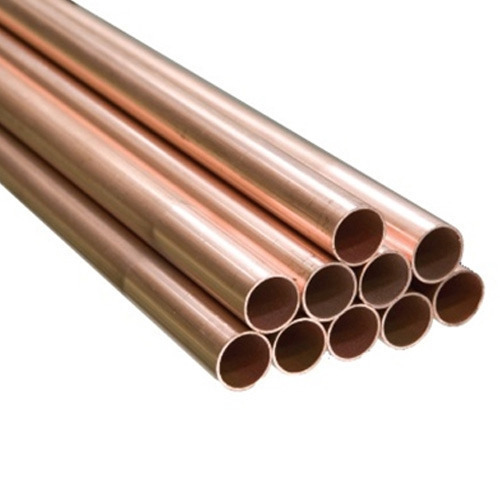

DLP Copper Tubes

DLP Copper Tubes
Using latest technology & optimum quality raw materials, we are manufacturing and exporting our clients a wide assortment of DLP Copper Tubes. Owing to their salient features such as durability, corrosion & rust resistance, high tensile strength and unmatched performance, these Industrial Copper Tubes find applications in varied industries. Our products pass through stringent quality checks before final dispatch to ensure that the clients get a defect free range of copper tubes.
These copper tubes are also well recognized in the markets for their salient features such as :

As these DLP Copper Tubes find usage in varied industries, these are made to pass through stringent quality checks so as to ensure clients get defect free range of Deoxidized Low Residual Phosphorous/DLP copper tubes in wide range of sizes. Meeting the specific needs of customers, we can offer these as per ASTM and other specifications.

Product Applications:

Specifications:
DLP Copper
  • ASTM B 68 C 12200
  • ASTM B 75 DLP C12000
  • BS 2871 Part 2 C 101
  • BS 2871 Part 3 C 106
  • EN 12451 DHP
  • JIS H3300 C 1220

Chemical Requirements
Copper 99.85% min
Phosphorus 0.013 to 0.05%
Total Imp. Excl. Mn 0.06% max
Physical Properties
Condition T.S.Kg/mm 2 EL% Min
Annealed 21.5 33%
As manufactured 23.5 13%
Fabrication Properties
Capacity for being
Cold worked Excellent
Hot formed Excellent
Suitability for soldering Good
Suitability for Brazing Good
Immunity to hydrogen Excellent
Embrittlement
Uses
General Engineering Purpose & Electrical Component

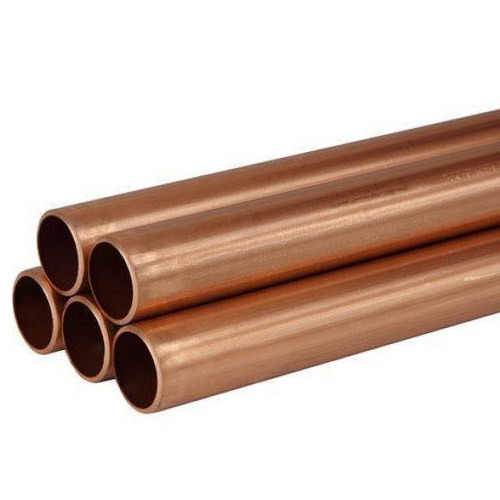

DHP Copper Tubes

Copper Pan Cake Coils
We also have with us rich product knowledge and process expertise to successfully handle the demands of offering DHP Copper Tubes. These are made of superior grade of copper and find usage in different industry sectors because of their inherent properties like

These copper tubes are also accurate in dimensions and are made available by us in customized finish specifications at highly competitive prices. Further, these deoxidized high residual DHP copper tubes are deoxidized with phosphorous and feature

Other than this, the copper tubes also allow an increase in re-crystallization temperatures from 150K to 200K. With our expertise in offering products like DTP copper, refrigeration copper tubes, air conditioning copper tubes, DTP copper alloy, relay copper tubes and others, these copper tubes/copper pipes are used for different purposes like

Product Applications:
Some of the areas these are used in include:

Specifications:
DHP Copper
  • ASTM B 68 C 12200
  • ASTM B 75 DLP C12000
  • BS 2871 Part 2 C 101
  • BS 2871 Part 3 C 106
  • EN 12451 DHP
  • JIS H3300 C 1220

Chemical Requirements
Copper 99.85% min
Phosphorus 0.013 to 0.05%
Total Imp. Excl. Mn 0.06% max
Physical Properties
Condition T.S.Kg/mm 2 EL% Min
Annealed 21.5 33%
As manufactured 23.5 13%
Fabrication Properties
Capacity for being
Cold worked Excellent
Hot formed Excellent
Suitability for soldering Good
Suitability for Brazing Good
Immunity to hydrogen Excellent
Embrittlement
Uses
General Engineering Purpose & Electrical Component


ETP Copper Tubes

Copper Pan Cake Coils
We have with us rich process expertise so as to successfully handle the demands of ETP Copper Tubes. These are made available by us in diverse grades, dimensions as well as thickness options and are available at affordable prices so as to effectively meet clients' specific budgetary requirements. Being durable and sturdy in construction, these are corrosion resistant as well as deliver high performance standards.

Some of the specific features of these Electrolytic Tough Pitch (ETP) copper tubes are


Product Applications:

Specifications:
EC / ETP Copper
  • ASTM B 68 C 12200
  • ASTM B 75 DLP C12000
  • BS 2871 Part 2 C 101
  • BS 2871 Part 3 C 106
  • EN 12451 DHP
  • JIS H3300 C 1220


90/10 Copper Nickel

90,10 Copper Nickel
90/10 Copper Nickel Tube is widely used in sea water. It has very good corrosion resistance to clean or moderately polluted marine or estuary water, even containing dissolved incondensable gases.

This alloy is virtually immune from stress-corrosion cracking and hot spot denickelification. In clean sea water, velocities of up 2,2-2,5 m/s (7,5-8,5 ft/s) are accepted while 4 m/s (13 ft/s) is the upper limit for clean fresh or slightly saline solutions.

To avoided the risk of deposit attack, it is generally recommended to never operate at water velocities below about 0,8-1 m/s (2,5-3,5 ft/s). 90/10 Copper Nickel Tubes can also be used, with appropriately reduced flow velocity, in contact with water containing some sulphides or suspended solids. It is also often selected for its good mechanical properties, both at room and relatively elevated temperatures.

Specifications:
90/10 Copper Nickel
  • ASTM B 111 C 70600
  • ASME SB 111 C 70600
  • BS 2871 Part 3 CN 102
  • EN 12451 CuNi10 Fe 1Mn
  • NFA51 102 CuNi10 Fe1Mn
  • JIS H 3300 C 7060
95/5 Copper Nickel
  • ASTM B 111 C 70400
  • ASME SB 111 C 70400
  • BS 2870 CN 101
  • ISO 1635 CuNi5Fe1MN
  • JIS C 2532 GCN10

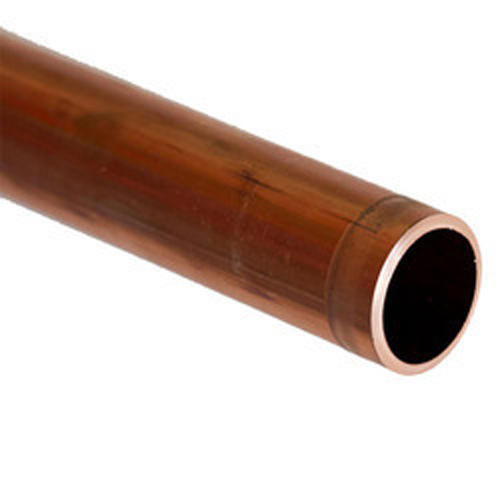

70/30 Copper Nickel

70-30 Copper Nickel
70/30 Copper Nickel Tube is mainly preferred when the severity of service condition (Cooling water, steam, condensate, temperature, etc.) is such as to virtually rule out all other coppermetals. Due to its hardness and to the type of oxide whereby its surfaced is self-protected, 70/30 Copper Nickel Tube has excellent resistance to impingement and erosion-corrosion by of suspended solids in sea water flowing at up to 3-3, 5 m/s (10-11, 5 ft /s). Like all Copper-nickels, 70/30 Copper Nickel Tube is virtually immune from stress-corrosion cracking. It can be very sensitive to deposit attack and is therefore not recommended for stagnant or slowmoving (under 1 – 1,2 m/s or 3,5-4 ft/s) water.

70/30 Copper Nickel is very widely employed in water desalination plants, especially in the most critical areas such as the heat reject and brine heater stages, as well as in the undercooling areas of power station condenser tubes, in the chemical, petrochemical and food processing industries and, more generally, in all applications where top corrosion resistance is required from both the shell and tube side.

Specifications:
70/30 copper Nickel
  • ASTM B 111 C 71500
  • ASME SB 111 C 71500
  • BS 2871 part 3 CN 107
  • EN 12451 CuNi 30 Fe 1 Mn
  • NFA 51 102 CuNi 30 Fe 1 Mn
  • JIS H 3300 C 7150
