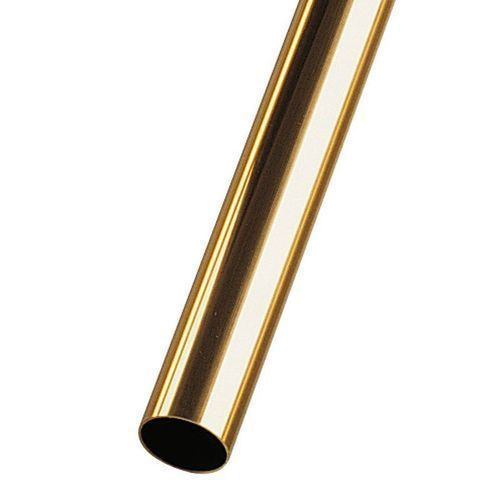

Forging Brass Hollow Rods

• ASTM B 124 C37700
• BS 2874 CZ 122
• IS 3488 Forging Brass

Product Details:

Chemical Requirements	CuZn42Pb2	CuZn40Pb2
Copper	56.5 - 60.0%	57.0 - 59.0%
Lead	0.60 to 2.0%	1.5 to 2.5%
Iron	0.30% max	0.40% max
Total Imp. Excl. Iron	0.20% max	0.70% max
Zinc	Remainder	Remainder
Physical Properties
Tensile Strength	380 Mpa Min	40 kg/mm2 Min.
Elongation %	25% Min	18% Min.
Izod Value	-	2.0 KJ min
Fabrication Properties
Capacity for being
Cold worked	Poor	Poor
Hot formed	Excellent	Excellent
Hot forgeability rating	100%	100%
Machinability Rating	80%	80%
Suitability for soldering	Excellent	Excellent
Suitability for Brazing	Good	Good
Uses
Forged Components, Industrial Valves, Defense components, Watch Case, Automobile Valves Components

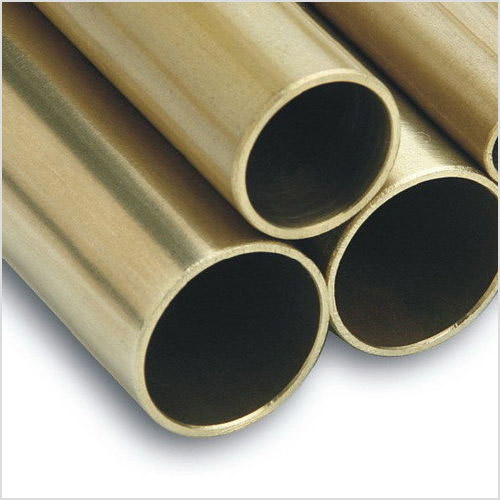

• ASTM B 455
• B 16 C 38500
• C 36000
• BS 2874 CZ - 121Pb3 or CZ124
• IS319 Grade I/ II/ III
• JIS3250 H C3604 or C3602

Product Details:

Chemical Requirements	Grade I
Copper	56.0 - 59.0%
Lead	2.0 to 3.50%
Iron	0.35% max.
Total Imp. Excl. Iron	0.70% max.
Zinc	Remainder
Physical Properties
Condition	Size	T.S. MPA	EL% Min
Annealed (O)	6-25 25-50 50 above	345 315 285	12 17 22
Half-Hard (HB)	6-12 12-25 25-50 50 above	405 395 355 325	4 6 12 17
Hard (HD)	6-12 12-25	550 490	- 4
Fabrication Properties
Capacity for being
Cold worked	Poor
Hot formed	Fair
Machinability Rating	100%
Suitability for soldering	Excellent
Suitability for Brazing	Good
Uses
Precision Components, Hardware, Hinges, Lock Bodies, Screws, Nuts & Bolts

Chemical Requirements		Grade II		Grade III
Copper		60.0 - 63.0%		60.0 - 63.0%
Lead		2.50 to 3.70%		0.50 to 1.50%
Iron		0.35% max		0.20% max
Total Imp. Excl. Iron		0.50% max		0.50% max
Zinc		Remainder		Remainder
Physical Properties
Condition	Size	T.S. T.S. MPA	EL% Min	T.S. MPA	EL% Min
Annealed (O)	6-25 25-50 50 above	355 305 275	15 20 25	315 285 255	22 27 32
Half-Hard (HB)	6-12 12-25 25-50 50 above	395 385 345 315	7 10 15 20	355n 345 305 285	8 12 22 27
Hard (HD)	6-12 12-25	550 485	4	460 400	4
Fabrication Properties
Capacity for being
Cold worked		Poor		Fair
Hot formed		Fair		Excellent
Machinability Rating		90%		80%
Suitability for soldering		Excellent		Excellent
Suitability for Brazing		Good		Excellent
Uses
Gr II : Gear, Pinions, Precision, Automobile, Electronic Parts
Gr III : Precision Components Machining with Riveting Operation

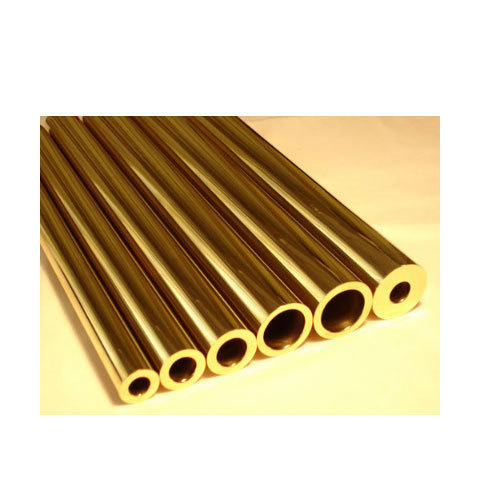

• IS 320 HT1 or HT2
• BS 2874 CZ114 or CZ115
• JIS 3250H C6782 or C6783

Product Details:

Chemical Requirements		HT1		HT2
Copper		56.0 - 60.0%		56.0 - 61.0%
Lead		0.20 to 1.50%		0.50 to 1.50%
Iron		0.20 to 1.25%		0.20 to 1.50%
Tin		0.20 to 1.0%		1.0% max
Aluminum		0.2% max		0.30 to 2%
Manganese		0.25 - 2.0%		0.50-2.0%
Total Imp.		0.50% max		0.50% max
Zinc		Remainder		Remainder
Physical Properties
Condition	Size	T.S. MPa	EL% Min	T.S. MPa	EL% Min
As manufactured	All Size	430 min	20%	460 min	20%
Cold-worked & Stress	10-40	480 min	12%	520 min	12%
Relieved	40 above			500 min	15%
Fabrication Properties
Capacity for being
Cold formed		Poor		Fair
Hot worked		Good		Good
Machinability Rating		30%		30%
Resistance to Corrosion		Excellent		Excellent
Suitability for soldering		Excellent		Fair
Uses
HT1 is suitable for Soldering
Ht2 is suitable for Machining

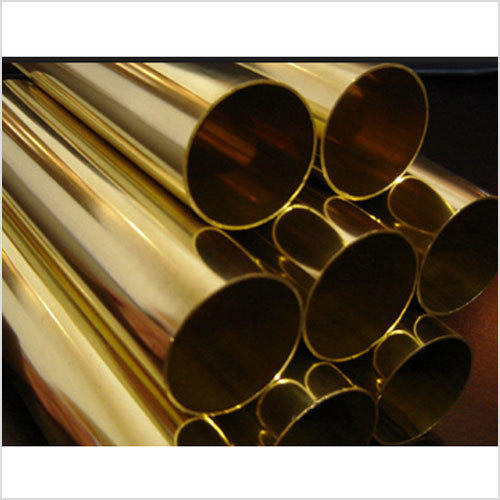

These rod are also known as Lead Free Brass Hollow Rods and is mainly used in blanking, riveting , bending, hot forging, watch case and belts, etc.

• IS4413
• IS4170
• DTD-627
• BS2874/86 CZ-109
• BS2872/86 CZ-108

Chemical Requirements	CuZn40	CuZn35	CuZn37	CuZn30
Copper	59.0 - 62.0%	63.0 - 68.5%	62.0 - 65.0%	60.5 - 71.50%
Lead	0.75% max	0.05% max	0.30% max.	0.05% max.
Iron	0.10% max	0.05% max	0.10% max	0.05% max
Total Imp.	0.30% max	0.30% max	0.60% max	0.30% max
Zinc	Remainder	Remainder	Remainder	Remainder

Brass hollow rods offers significant economic advantages, by way of removing the need for drilling operations, and very often the boring out of the parts.

Numerous applications, and in particular for the making of taps and valves (plumbing-heating industry), use many components that require the boring out of parts.

Industrial Application:- Widely uses in the automobile industry for synchronizer range and bearing cage and brass retainer.

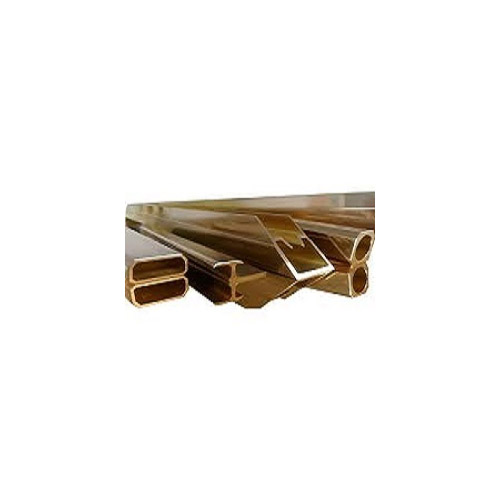

Profile and Flats Brass Rods

• BS249
• IS: 319 Gr. l & ll
• IS: 8364 Gr. l & ll
• BS: 2874 CZ121Pb3
• CuZn39Pb3

• IS 4170 CuZn40
• BS 2874 CZ109
• JIS 3250 H C2800
• ASTM B171 C 36500
• IS 4413 CuZn37
• BS 2872 CZ108

Chemical Requirements	CuZn35Pb1	CuZn35
Copper	62.0 - 65.0%	63.0 - 68.0%
Lead	0.75 to 1.50%	0.02% max.
Iron	0.10% max	0.05% max
Total Imp.	0.50% max	0.30% max
Zinc	Remainder	Remainder

Physical Properties
Condition	T.S. MPa	EL% Min	T.S. MPa	EL% Min
Quarter Hard (HA)	325-390	30%	340-345	30%
Half-Hard (HB)	400-490	20%	420-510	15%
Hard (HD)	500-685	15%	-	-
Extra Hard (HE)	695-885	5%	-	-

Fabrication Properties
Capacity for being
Cold forming	Excellent
Machinability Rating	70%
Bending	Excellent
Riveting	Excellent

Uses

Ductile Alloy with good combination of bending as well as cold heading properties
