Ingots Exporter
Shree Extrusions Limited
BRASS ALLOYS
BRONZE ALLOYS

COPPER ALLOYS

C68700 Aluminum Brass

UNS CDA101, ASTM B187, ASTM B152, CuZn20Al2As

The C68700 Aluminum Brass contains small amount of arsenic and can also be added as inhibitor against dezincification. The aluminum brass is mainly used while manufacturing the condensor tubes as these stops the action causes by brackish water and high velocity salts. The metal alloy is resistant to impingement attack and the tubes are also recommended for using in power stations.
C68700 Aluminum Brass
C68700 Aluminum Brass
PDF
Typical Uses for C68700 Aluminum Brass "Arsenical" :










Equivalent Specifications:
SPECIFICATIONS DESIGNATION
ISO CuZn20Al2
Europen CuZn20Al2
BS CZ 110
JIS C6870
Russian LAMs77-2-0.05

Chemical Composition:
Al As Cu Fe Pb Zn
Min/Max 1.8 - 2.5 0.02 - 0.06 76.0 - 79.0 0.06 0.07 Rem
Nominals 2.0000 0.0400 77.5000 - - 20.5000

Specifications:
End Product Specification
Tube, Condenser ASME SB111, ASTM B111
Tube, Finned ASME SB359, ASTM B359
Tube, Finned ASME SB543, ASTM B543
Tube, U-bend ASME SB395, ASTM B395

Fabrication:
Joining Technique Suitability
Brazing Good
Butt Weld Good
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Fair
Coated Metal Arc Welding Not Recommended
Gas Shielded Arc Welding Fair
Machinability Rating 30
Oxyacetylene Welding Fair
Seam Weld Fair
Soldering Fair
Spot Weld Good

Physical Properties:
Product Property US Customary Metric
Coefficient of Thermal Expansion 10.3 ·10-6 per oF (68-572 F) 18.5 ·10-6 per oC (20-300 C)
Density 0.301 lb/in3 at 68 F 8.33 gm/cm3 @ 20 C
Electrical Conductivity 23 %IACS @ 68 F 0.135 MegaSiemens/cm @ 20 C
Electrical Resistivity 45.1 ohms-cmil/ft @ 68 F 7.5 microhm-cm @ 20 C
Melting Point - Liquidus 1780 F 971 C
Melting Point - Solidus 1710 F 932 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Modulus of Rigidity 6000 ksi 41370 MPa
Specific Gravity 8.33 8.33
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg/ · oK at 293 K
Thermal Conductivity 58.0 Btu · ft/(hr · ft2·oF)at 68F 100.4 W/m · oK at 20 C

Sizes Available
HOLLOW RODS Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS 6mm To 130 mm
HEX 5mm To 60mm
SQUARE 4mm To 60mm
FLAT 5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS AS per Customer Drawing
BILLETS Up to 200mm
INGOTS AS per Specification

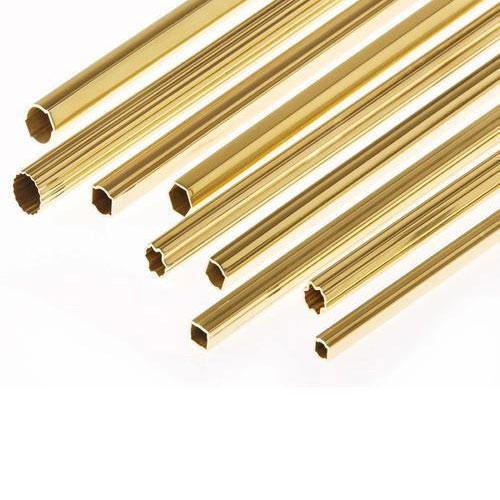

C44300 Admiralty Brass

C44300 Admiralty Brass
C44300 Admiralty Brass
PDF
CuZn28Sn1As, CW706R

The copper based C44300 Admiralty Brass alloy is ideal for manufacturing heat exchanger tubes. The alloy is manufactured to cater engineering requirements and find applications mainly in oil and gas industries that also require its non corrosive properties.

Applications :



Equivelent Specifications
SPECIFICATIONS DESIGNATION
ISO CuZn28Sn1
Europen CuZn28Sn1As
BS CZ 111
JIS C 4430
Russian L62-1

Chemical Composition:
As Cu Fe Pb Sn Zn
Min/Max 0.02 - 0.06 70.0 - 73.0 0.06 0.07 0.8 - 1.2 Rem
Nominals 0.0400 71.0000 - - 1.0000 28.0000

Fabrication Properties
Joining Technique Suitability
Brazing Excellent
Butt Weld Good
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Fair
Coated Metal Arc Welding Not Recommended
Gas Sheilded Arc Welding Fair
Machinability rating 30
Oxyacetylene Welding Good
Seam Weld Not Recommended
Soldering Excellent
Spot Weld Good

Specifications
End Product Specification
Plate, Clad ASTM B432
Plate, Condenser Tube ASME SB171, ASTM B171
Tube ASTM B135
Tube, Condenser ASME SB111, ASTM B111
Tube, Finned ASME SB359, ASTM B359
Tube, U-Bend ASME SB395, ASTM B395
Tube, Welded ASME SB543, ASTM B543

Physical Properties
Product Property US Customary Metric
Coefficient of Thermal Expansion 11.2 ·10-6 per oF (68-572 F) 20.2 · 10 6? per °C (20-300 C)
Density 0.308 lb/in3 @ 68 F 8.53 gm/cm3 @ 20 C
Electrical Conductivity 25 %IACS @ 68 F 0.146 MegaSiemens/cm @ 20 C
Electrical Resistivity 41.5 ohms-cmil/ft @ 68 F 6.9 microhm-cm @ 20 C
Melting Point Liquid US 1720 F 938 C
Melting Point Solid US 1650 F 899 C
Modulas of Elasticity in Tension 16000 ksi 110000 MPa
Modulas of Rigidity 6000 ksi 41370 MPa
Specific Gravity 8.53 8.53
Specific Heat Capacity 0.09 Btu/lb/°F @ 68 F 377.1 J/kg · °K at 293 K
Thermal Conductivity 64.0 Btu · ft/(hr · ft2 ·°F) @ 68 F 110.8 W/m · °K at 20 C

Sizes Available
HOLLOW RODS Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS 6mm To 130 mm
HEX 5mm To 60mm
SQUARE 4mm To 60mm
FLAT 5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS AS per Customer Drawing
BILLETS Up to 200mm
INGOTS AS per Specification

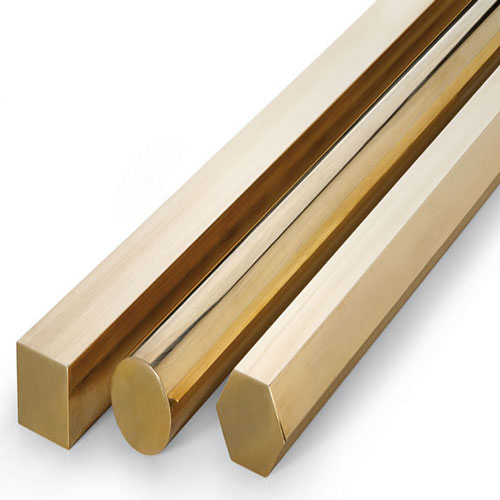

C66700 Manganese Brass

C66700 Manganese Brass
C66700 Manganese Brass
PDF
 Excellent hot and cold workability; good forge ability. Fabricated by bending, coining, coppersmith, drawing and upsetting, hot forging and pressing, knurling, roll threading, shearing, spinning, swaging, and stamping.

Common Fabrication Processes

Equivelent Specifications
SPECIFICATIONS DESIGNATION
ISO C67300
Europen C67400
BS C67420
Australia 673

Chemical Composition:
Cu Fe Pb Mn Zn
Min/Max 68.5-71.5 0-0.1 0-0.07 0.8-1.5 Rem

Typical uses
Product Category Product Reason Category Reason
Industrial Resistance Weldable Brass Products Corrosion Resistance Corrosion Resistance
  Resistance Weldable Brass Products Mechanical Properties Moderate Strength
  Resistance Weldable Brass Products Welding Characteristics Weldability

Physical Properties
Melting Point - Liquidus°F 2000
Melting Point - Solidus°F 1920
Densitylb/cu in. at 68°F 0.308
Specific Gravity 8.53
Electrical Conductivity% IACS at 68°F 17
Thermal ConductivityBtu/ sq ft/ ft hr/ °F at 68°F 56
Coefficient of Thermal Expansion 68-57210?6 per °F (68 – 572°F) 11.1
Specific Heat CapacityBtu/ lb /°F at 68°F 0.09
Modulus of Elasticity in Tensionksi 16000

Thermal Properties
Treatment Minimum* Maximum*
*Measured in Fahrenheit
Annealing 930 1300
Hot Treatment 1340 1560

Fabrication Properties
Technique Suitability Footnote
Soldering Excellent
Brazing Excellent
Oxyacetylene Welding Good
Gas Shielded Arc Welding Fair
Coated Metal Arc Welding Not Recommended
Spot Weld Excellent
Seam Weld Excellent
Butt Weld Excellent
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Fair Actually fair to good.
Machinability Rating 30

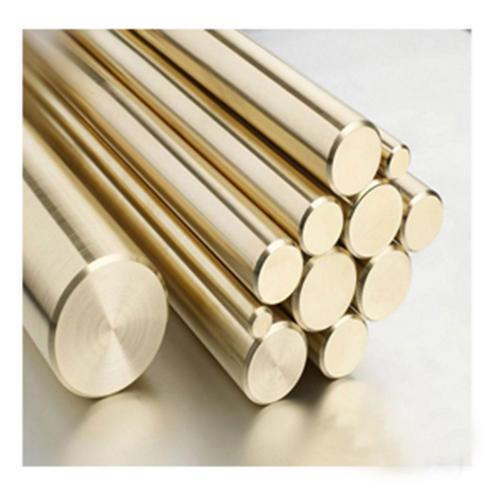

C66800 Manganese Brass

C66800 Manganese Brass
C66800 Manganese Brass
PDF
The C66800 Manganese Brass comes under the category of naval brass and is composed of 60% copper, 39.2% zinc and 0.8% tin. In compliance with typical naval brass the alloy possess good strength as well as rigidity. The corrosion resistance towards sea water is achieved due to the presence of zinc in place of tin. The addition of tin also makes the alloy resistant towards dezincification, fatigue, galling, and stress corrosion cracking.

Applications:
Equivelent Specifications
SPECIFICATIONS DESIGNATION
ISO C67300
Europen C67400

Chemical Composition:
Cu Al Fe Pb Mn Ni Si Sn Zn
Min/Max 60.0-63.0 .25 .35 .50 2.0-3.5 .25 .50-1.5 .30 Rem.
Nominals 61.5 - - - 2.7 - 1.0 - -

Sizes Available
HOLLOW RODS Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS 6mm To 130 mm
HEX 5mm To 60mm
SQUARE 4mm To 60mm
FLAT 5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS AS per Customer Drawing
BILLETS Up to 200mm
INGOTS AS per Specification


C69400 Silicon Red Brass

C69400 Silicon Red Brass
C69400 Silicon Red Brass
PDF
The C69400 Silicon Red Brass is mainly used for commercial piping applications in plumbing industry. Owing to its excellent corrosion resistance it is used in underground service lines.

Applications :




Chemical Composition:
Cu Fe Pb Si Zn
Min/Max 80-83 0.2 max 0.3 max 3.5-4.5 Rem

Specifications
End Product Specification
Rod B-371

Physical Properties
Product Property
Tensile Strength up to 25mm 550 MPA
Elongation 15% min

Sizes Available
WIRE 1mm TO 8 mm
HOLLOW RODS Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS 6mm To 130 mm
HEX 5mm To 60mm
SQUARE 4mm To 60mm
FLAT 5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS AS per Customer Drawing
BILLETS Up to 200mm
INGOTS AS per Specification


C69430 Silicon Red Brass

C69430 Silicon Red Brass
C69430 Silicon Red Brass
PDF
The silicon red brass is specified for underground service lines since it offers great corrosion resistance to all types of potable waters, and has moderate strength and good retention of spring properties.

Applications :






Chemical Composition:
As Cu Fe Pb Si Zn
Min/Max 0.03 - 0.06 80.0 - 83.0 0.2 0.3 3.5 - 4.5 Rem
Nominals 0.0400 81.5000 - - 4.0000 14.5000

Applicable Specifications
Product Specification
Rod ASTM B371

Fabrication Properties
Joining Technique Suitability
Brazing Excellent
Butt Weld Good
Capacity for Being Cold Worked Good
Capacity for Being Hot Formed 80
Coated Metal Arc Welding Good
Forgeability Rating 80
Gas Shielded Arc Welding Good
Machinability Rating 30
Oxyacetylene Welding Good
Seam Weld Good
Soldering Excellent
Spot Weld Good

Physical Properties
Product Property US Customary Metric
Coefficient of Thermal Expansion 11.2 ·10-6 per oF (68-572 F) 20.2 ·10-6 per oC (20-300 C)
Density 0.26 lb/in3 at 68 F 8.19 gm/cm3 @ 20 C
Electrical Conductivity 6 %IACS @ 68 F 0.036 MegaSiemens/cm @ 20 C
Electrical Resistivity 167.0 ohms-cmil/ft @ 68 F 27.76 microhm-cm @ 20 C
Melting Point - Liquidus 1685 F 918 C
Melting Point - Solidus 1510 F 819 C
Modulas of Elasticity in Tension 16000 ksi 110000 Mpa
Specific Gravity 8.19 8.19
Specific Heat Capacity 0.09 Btu/lb/oF at 68 F 377.1 J/kg · oK at 293 K
Thermal Conductivity 15.0 Btu · ft/(hr · ft2·oF)at 68F 26.0 W/m · oK at 20 C

Sizes Available
WIRE 1mm TO 8 mm
HOLLOW RODS Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS 6mm To 130 mm
HEX 5mm To 60mm
SQUARE 4mm To 60mm
FLAT 5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS AS per Customer Drawing
BILLETS Up to 200mm
INGOTS AS per Specification
